2002 Mazda 626 ES, AutomaticFACTORY OEM SERVICE PROCEDURE

Dual Proportioning Valve Installation Note

  • Install the dual proportioning valve so that the R mark faces right side of the vehicle.

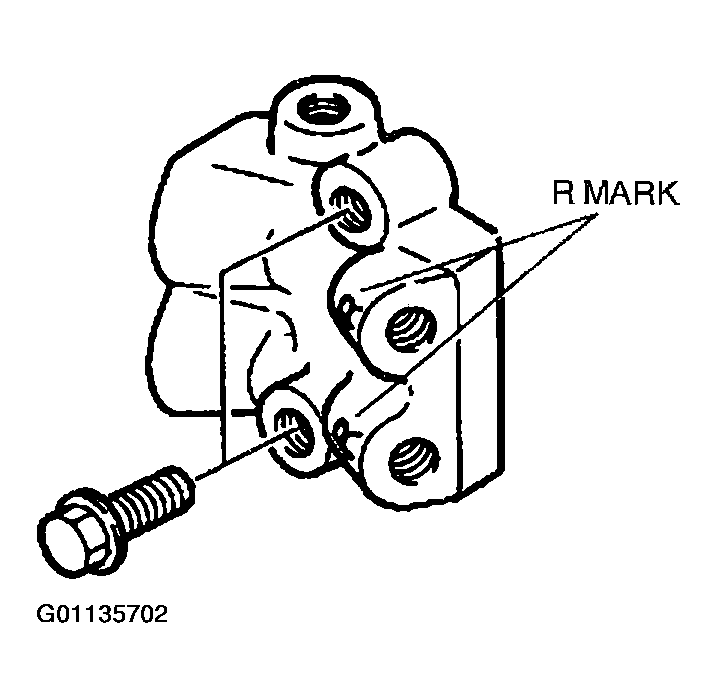

    Fig 1: Identifying Dual Proportioning Valve R Marks
    G01135702Courtesy of MAZDA MOTORS CORP.
