2002 Mazda 626 ES, AutomaticFACTORY OEM SERVICE PROCEDURE

Dual Proportioning Valve Inspection: Notes

Connect the SSTs to the brake pipes as shown in the figure.
Bleed the air from the brake system.
Measure the fluid pressure of the master cylinder and the rear brake.
- If not within the specification, replace the dual proportioning valve.

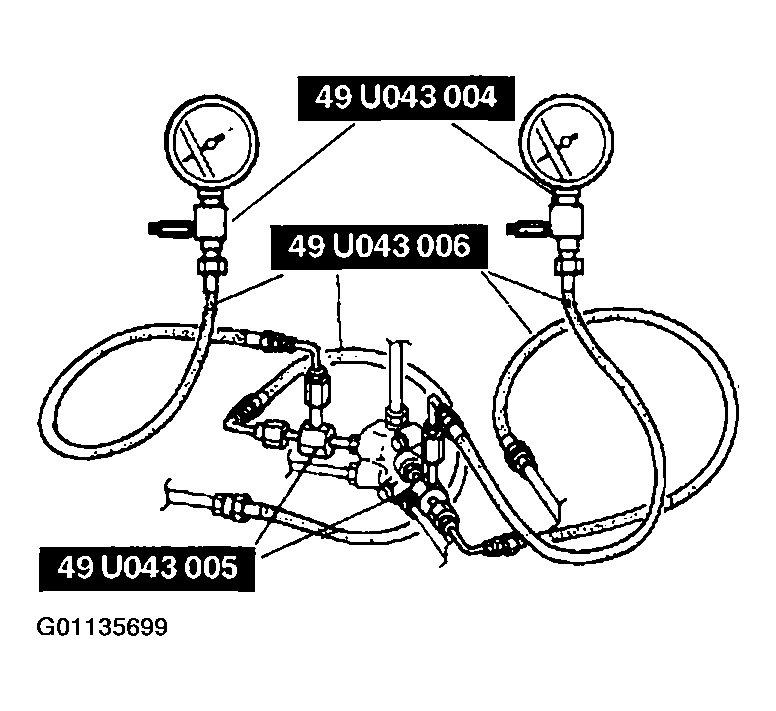

  Fig 1: Connecting The SSTs
  Courtesy of MAZDA MOTORS CORP.
