2002 Mazda 626 ES, AutomaticFACTORY OEM SERVICE PROCEDURE

Brake Switch Inspection

Disconnect the brake switch connector.
Inspect for continuity between the terminals of the brake switch connector by using the circuit tester.
- If not as specified, replace the brake switch.

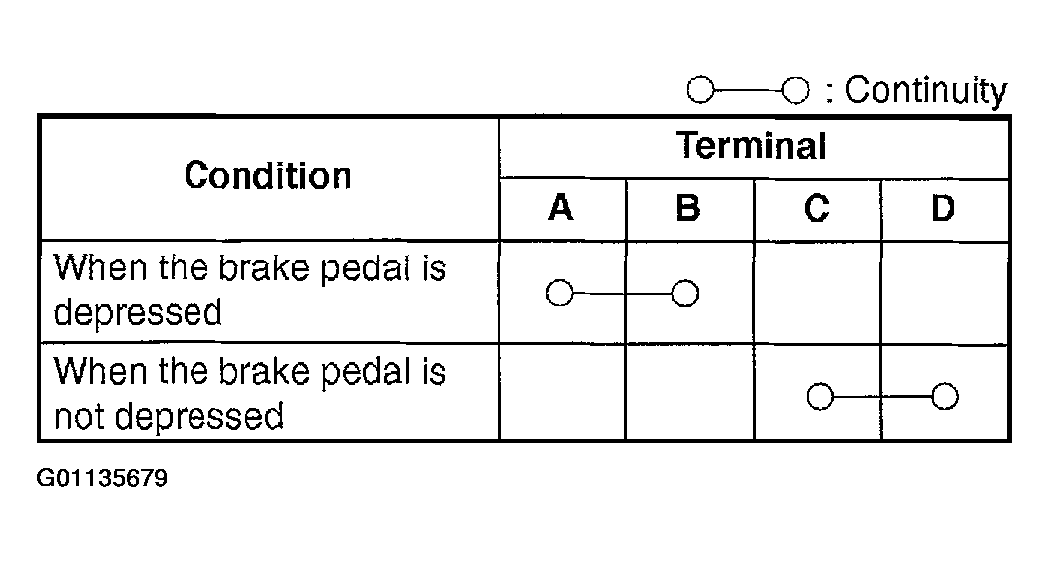

  Fig 1: Brake Switch Continuity Table
  Courtesy of MAZDA MOTORS CORP.

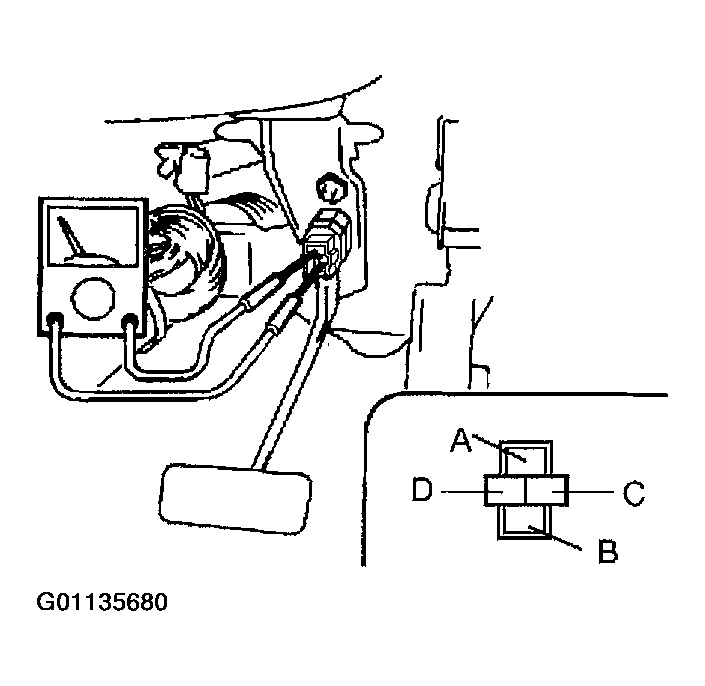

Fig 2: Checking Brake Switch Continuity & Connector View
Courtesy of MAZDA MOTORS CORP.
