2002 Mazda 626 ES, AutomaticFACTORY OEM SERVICE PROCEDURE
Abs Control Module Removal Note
- Install the screw plugs (supplied in the service part kit) onto the brake pipe holes of the HU.

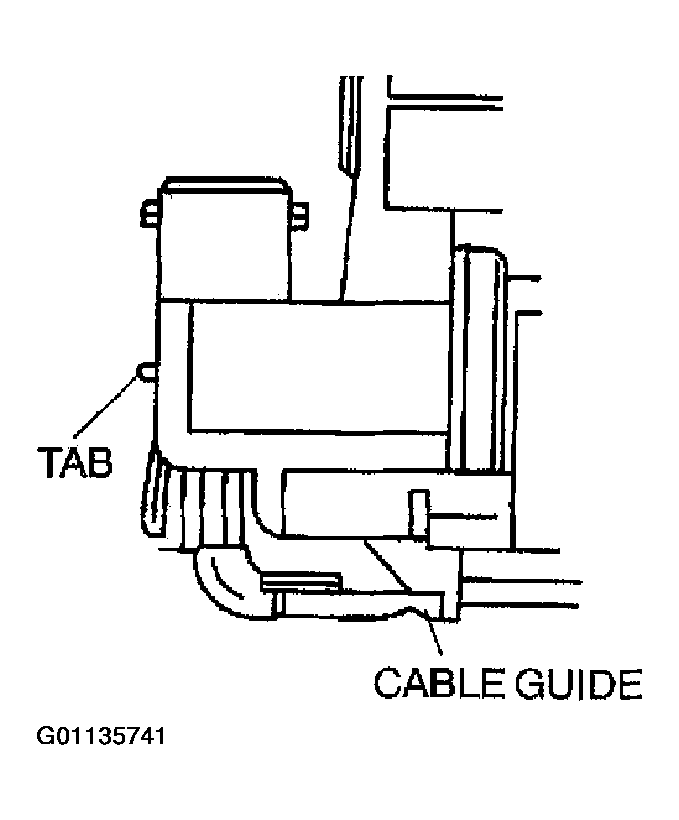

- Disconnect the motor connector as follows.CAUTION:
- Do not apply force on the locking tab when disconnecting the connector.
- Lift up the tab to unlock the connector by hand.
- Pull the connector from the ABS CM by grasping the side of the motor connector.
- Carefully pull the wiring of the pump motor out of the cable guides.

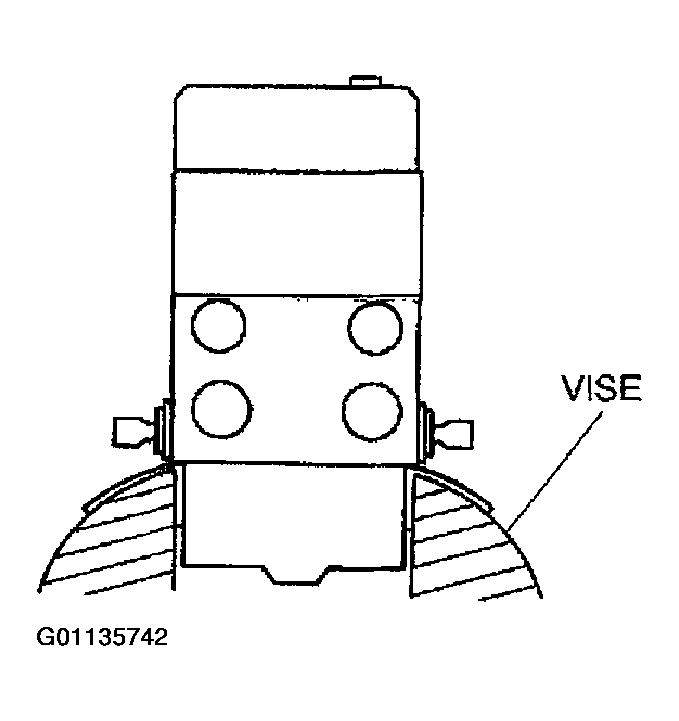

- Secure the Hydraulic Unit as shown.
- Remove the bolts.
- Protect the Hydraulic Unit from damage to the valve body and keep the sealing surface free from foreign materials.
