Abs Control Module Installation Note
- Verify that the sealing surface of the Hydraulic Unit is clean. If there are scratches, grooves or dirt, do not mechanically rework. Carefully remove any dirt or seal residue with plastic tools only. The use of chemical solvents is not permitted.

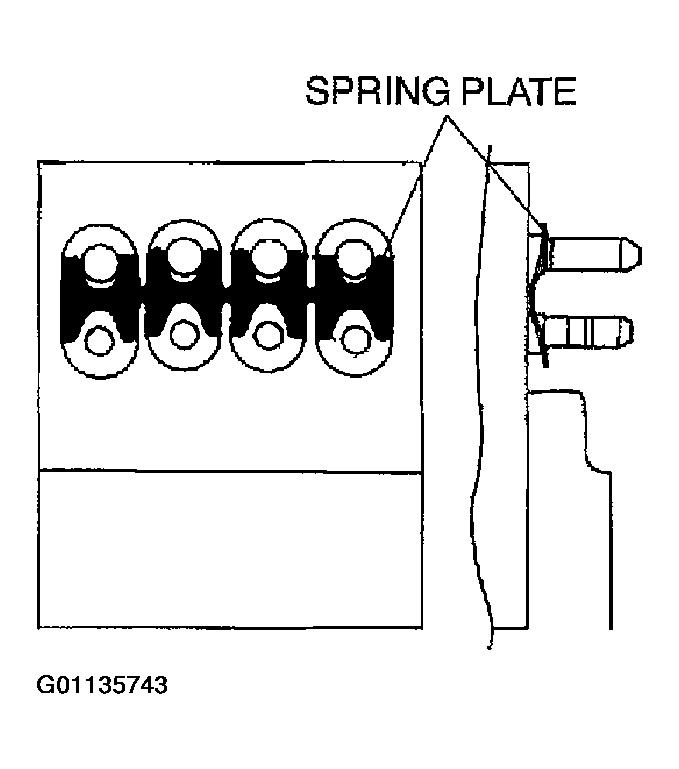

- Install the spring plate properly. When re-installing, insert the spring plate over the valve bodies in the correct position to preload the spring and to center the solenoid coils.
- Carefully fit the coils of the ABS CM over the valve bodies.
- Locate the ABS CM by placing the new bolts evenly against the housing and tightening them slightly by hands. To aid alignment, the housing may be pressed onto the contact surface by hand while tightening the bolts.

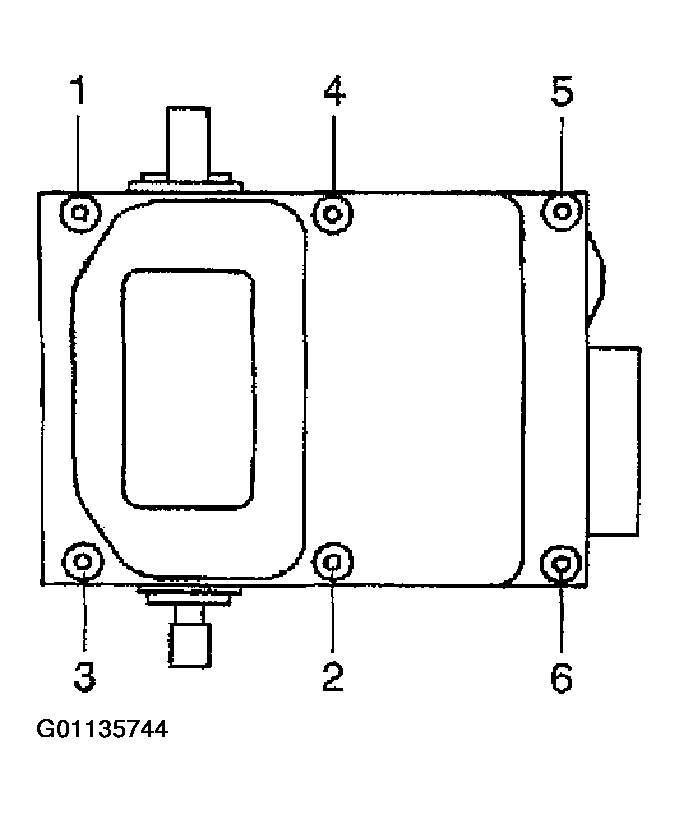

- Tighten the bolts to the specified torque in the order shown.
Tightening Torque
2.4-2.8 N.m {24-28 kgf.cm, 21-24 in.lbf}
- Visually inspect for all bolts mode contact. The ABS CM must be flush against the housing with no gap in the area of the bolts.
- Connect the 2-pin connector of the pump motor to the ABS CM. Verify that the spring clip is engaged securely.
- Clip the wiring back in the cable guide.
- Reinsert the soft mount if it has fallen out.
- Inspect flats of two side retaining bolts and position flats vertically by turning bolts as necessary.
