2001 Mazda Tribute ES, FWDFACTORY OEM SERVICE PROCEDURE

Assembly Note

NOTE: The identification dot on the pump driven gear must face downward.
  1. Install the pump driven gear.

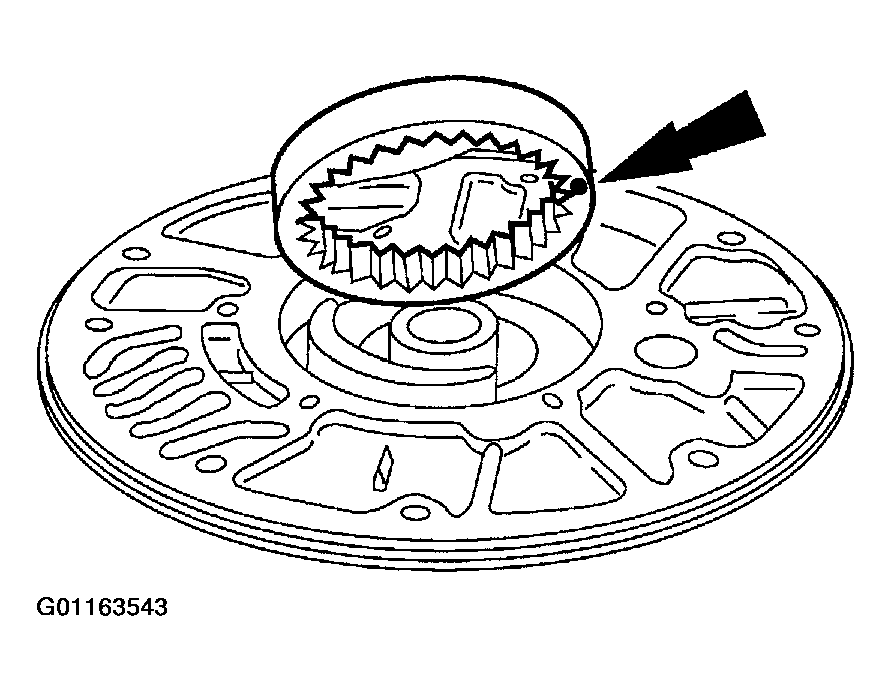

    Fig 1: Installing Pump Driven Gear
    G01163543
  2. Install the pump drive gear assembly.
    1. Install the pump drive gear.
    2. Install the pump drive gear insert.

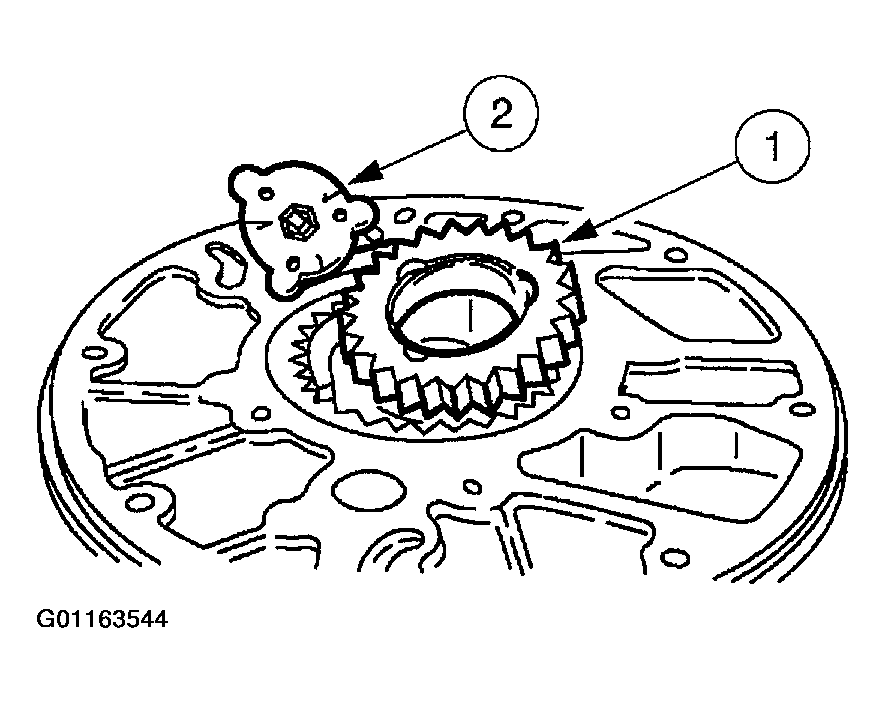

    Fig 2: Installing Pump Drive Gear Assembly
    G01163544
  3. Using the special tool, measure the clearance between each gear and the pump body face.

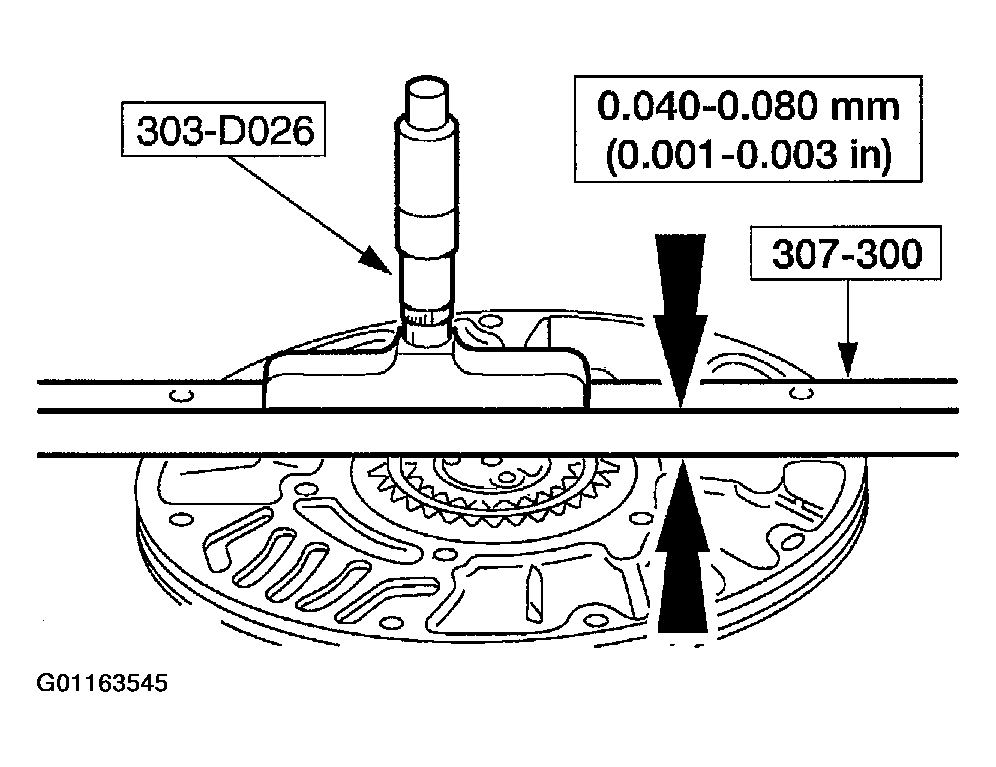

    Fig 3: Measuring Clearance Between Gears And Pump Body
    G01163545
    1. If the clearance exceeds specification, install a new pump assembly.
  4. Install the special tool.

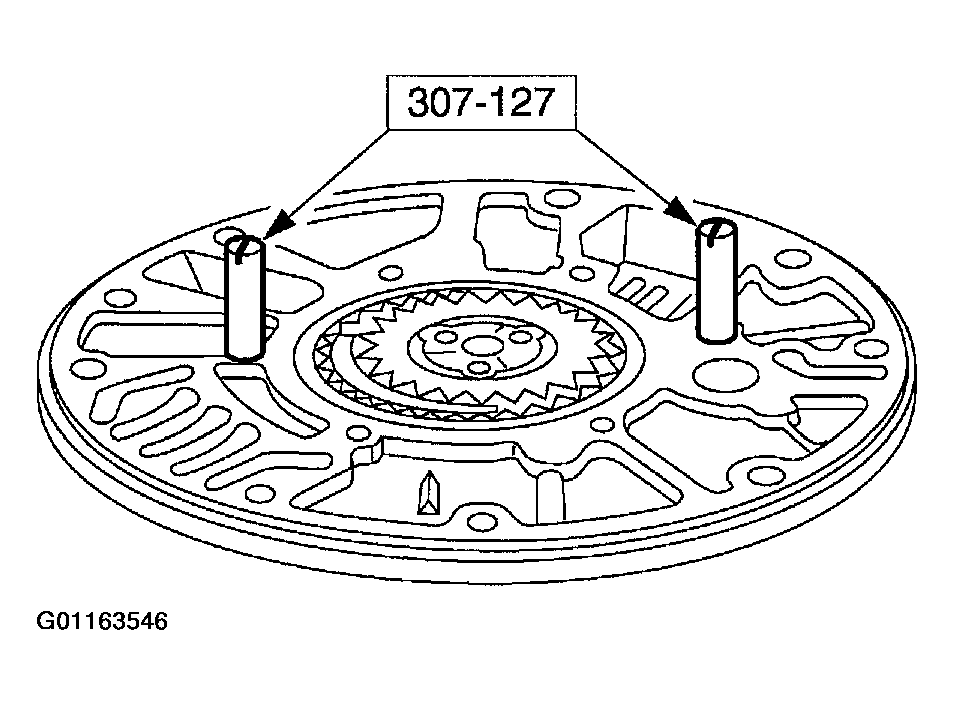

    Fig 4: Installing Special Tool
    G01163546
  5. Align the pump support assembly. Fill the pump gear cavity with MERCON(R) Multi-Purpose (ATF) Transaxle Fluid to the top of the gears. Align the pump guide screws.

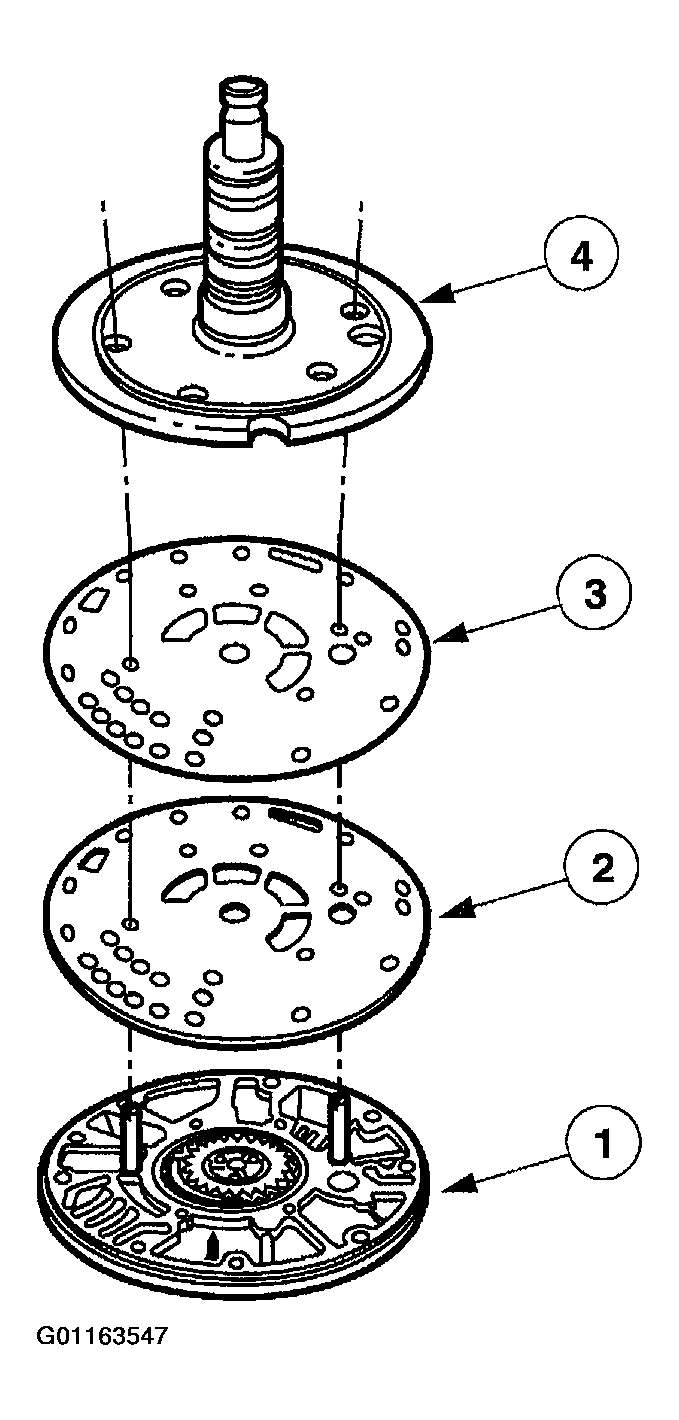

    Fig 5: Installing Pump Body
    G01163547
    1. Install the pump body.
    2. Install the pump body separator plate.
    3. Install the pump body separator plate gasket onto the pump body.
    4. Install the pump support.
    NOTE: Install the four pump support bolts in the pump support holes, and remove the special tool. Then install the last two bolts.
  6. Install the six pump support bolts.

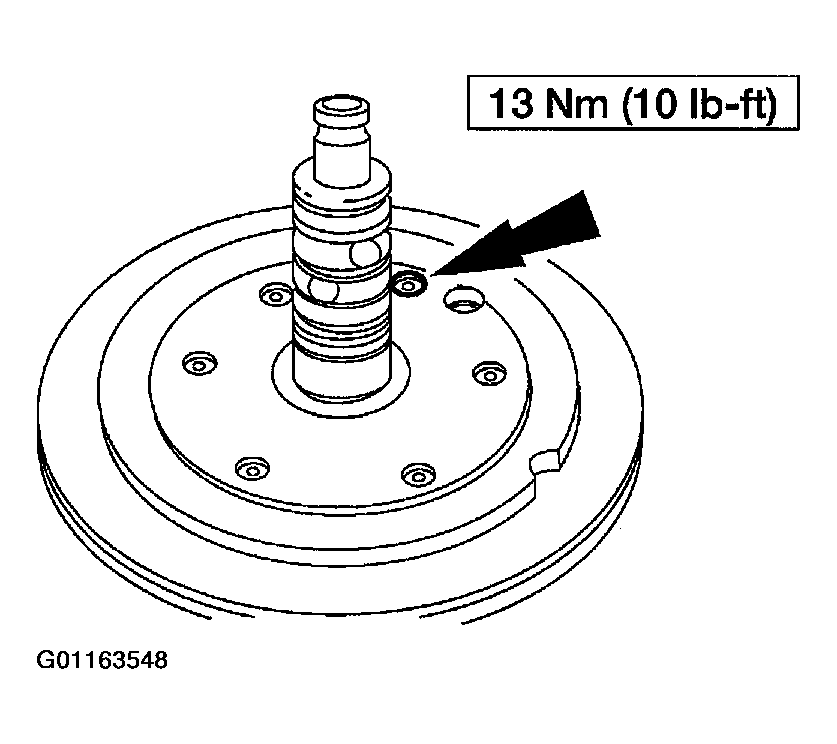

    Fig 6: Installing Six Pump Support Bolts
    G01163548
