2001 Mazda Tribute ES, FWDFACTORY OEM SERVICE PROCEDURE

Disassembly Note

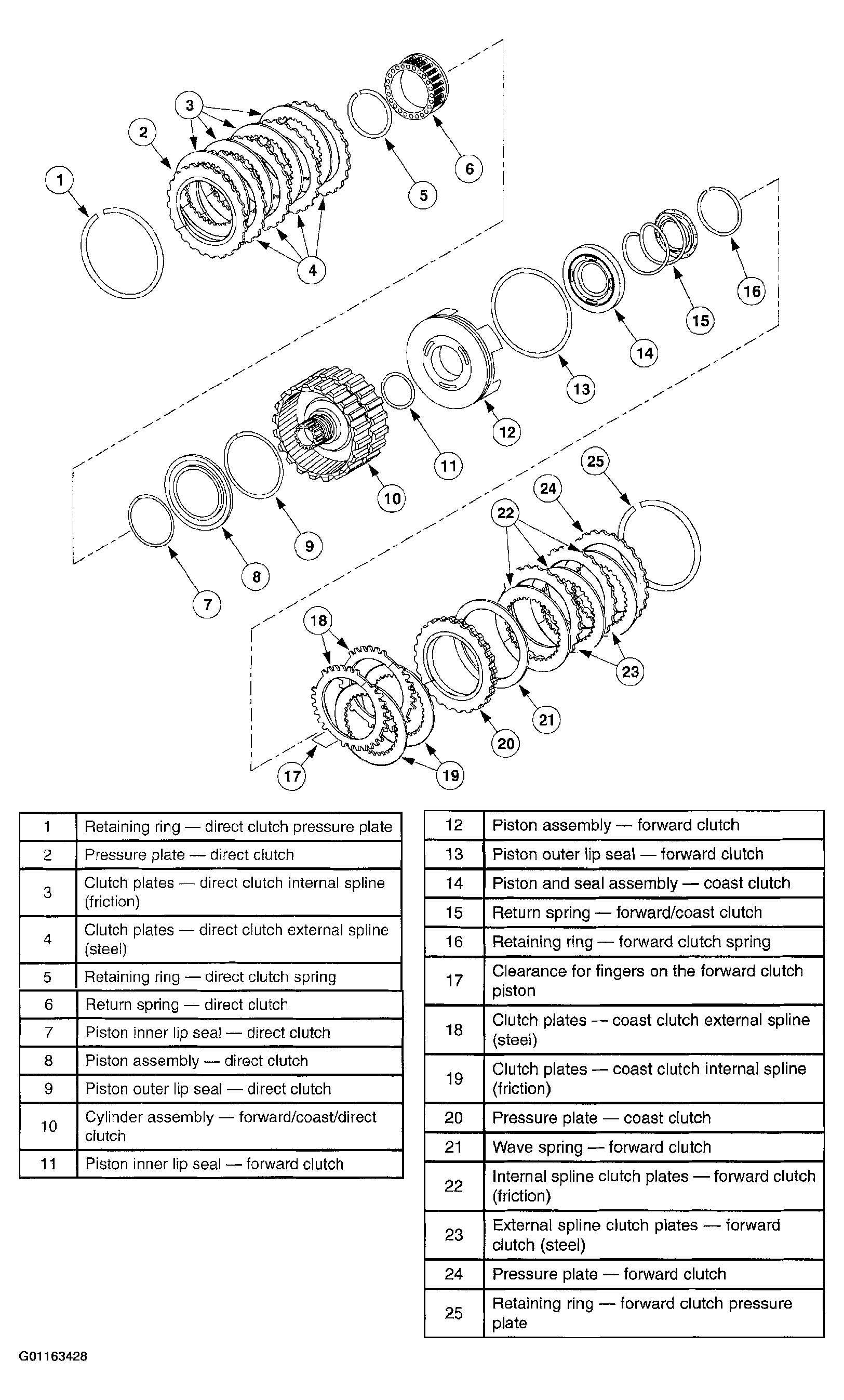

Fig 1: Exploded View Of Forward/Coast/Direct Clutches

Remove the direct clutch pressure plate retaining ring.

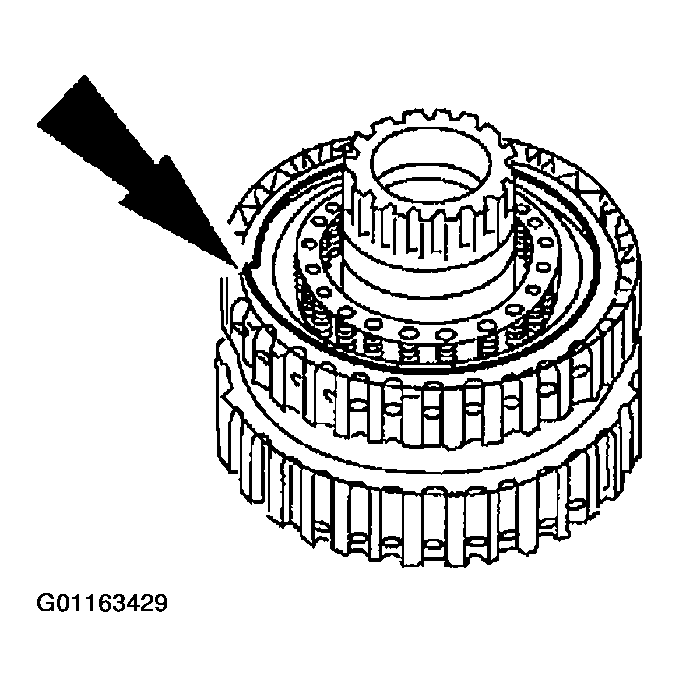

Fig 2: Removing Direct Clutch Pressure Plate Retaining Ring
Disassemble the direct clutch pack.

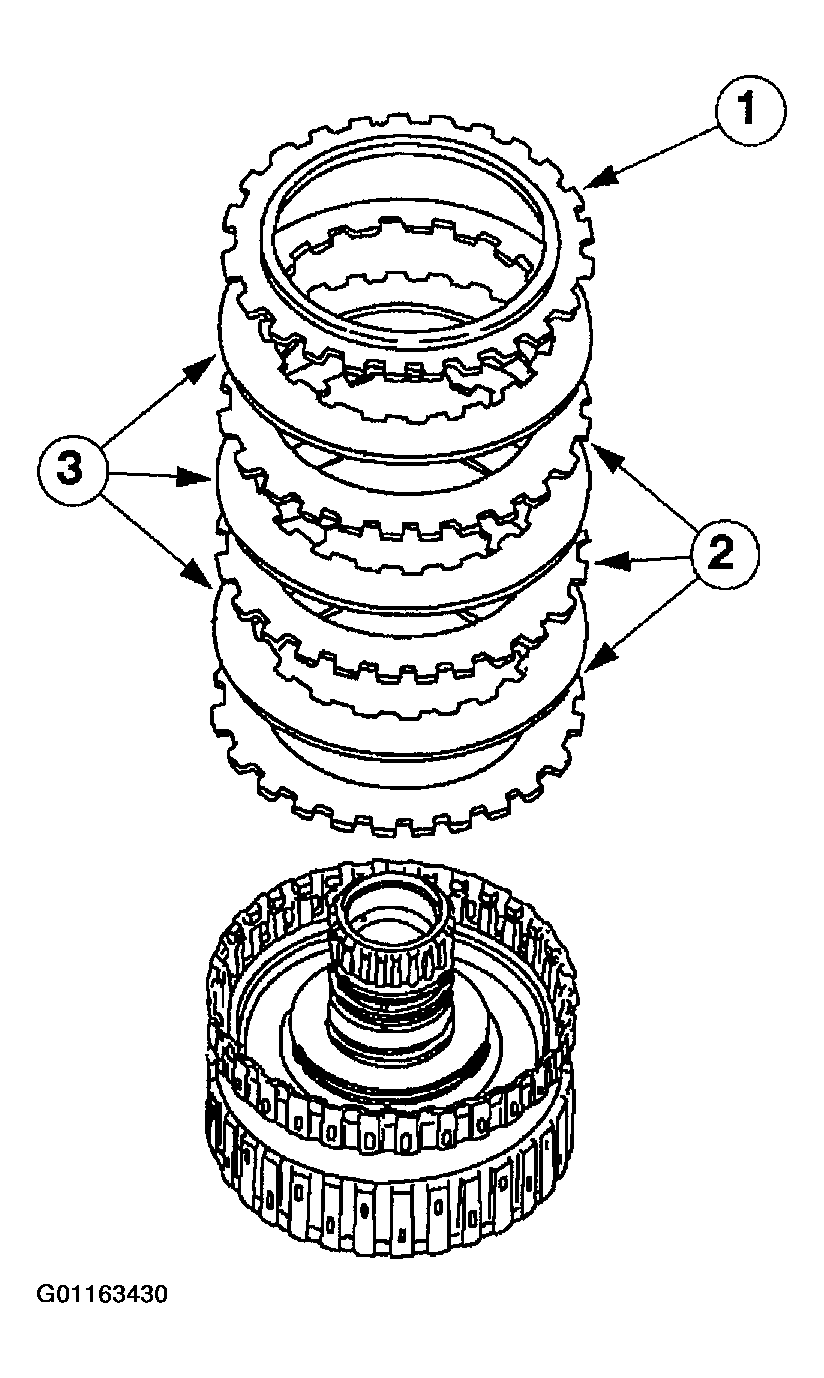

Fig 3: Disassembling Direct Clutch Pack
1. Remove the direct clutch pressure plate.
2. Remove the direct clutch steel plates.
3. Remove the direct clutch friction plates.
WARNING: Use caution when releasing tool pressure on the clutch piston springs. Failure to follow these instructions may result in personal injury.
