2001 Mazda Tribute ES, FWDFACTORY OEM SERVICE PROCEDURE

Assembly Note

Soak the internal spline clutch plates in clean MERCON(R) Automatic Transaxle Fluid (ATF) for 30 minutes before assembly.

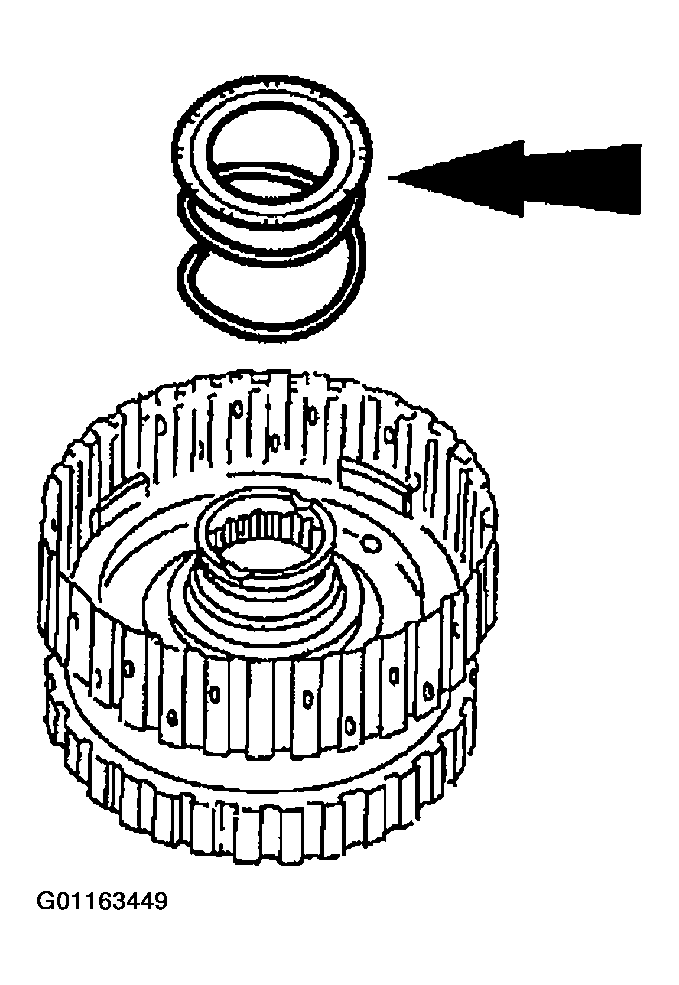

Install the forward clutch piston inner seal on the forward/coast/direct clutch cylinder assembly.

Fig 1: Installing Forward Clutch Piston Inner Seal

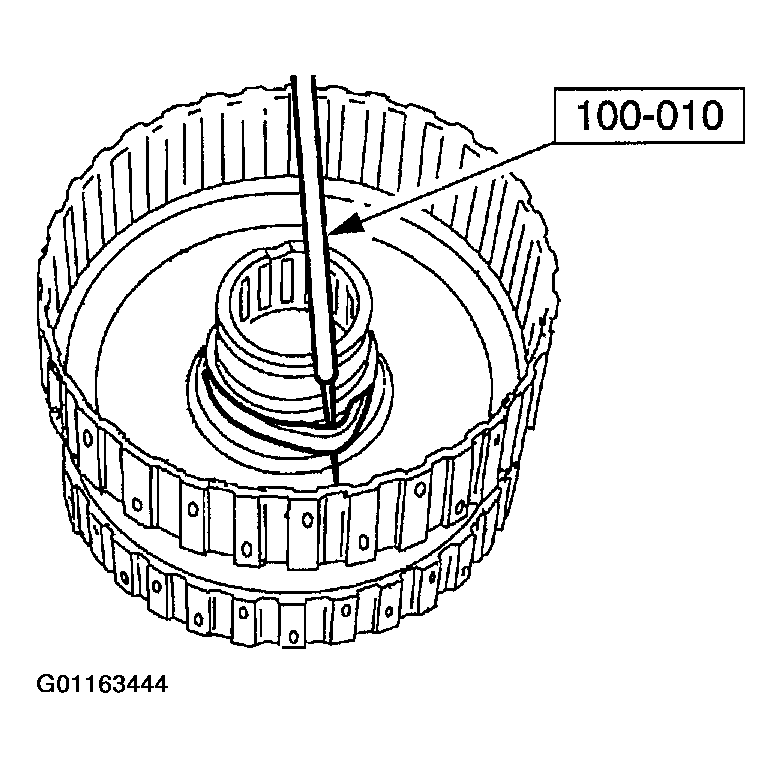

Install the forward clutch piston outer lip seal on the forward clutch piston assembly.

Fig 2: Installing Forward Clutch Piston Outer Lip Seal

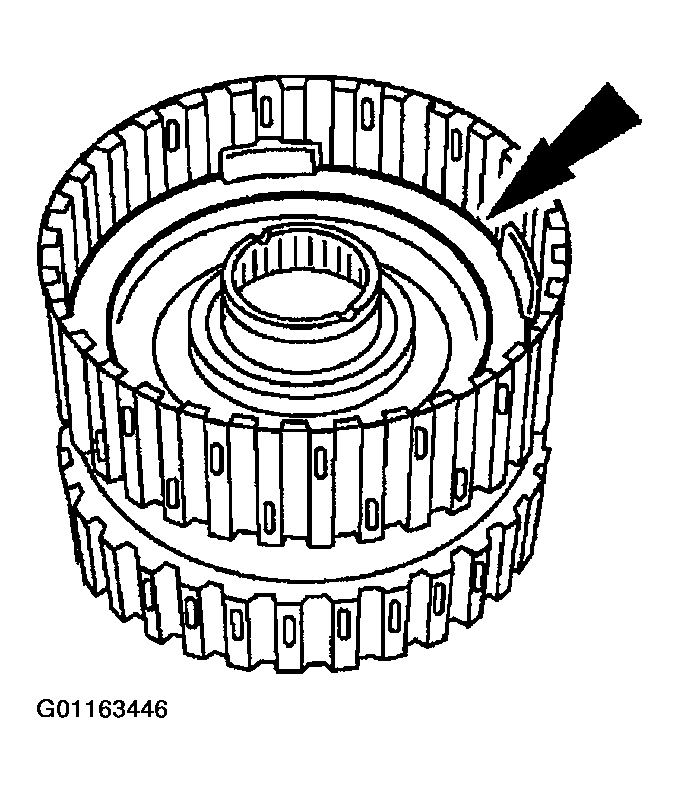

Install the forward clutch piston assembly in the forward/coast/direct clutch cylinder assembly.

Fig 3: Installing Forward Clutch Piston Assembly

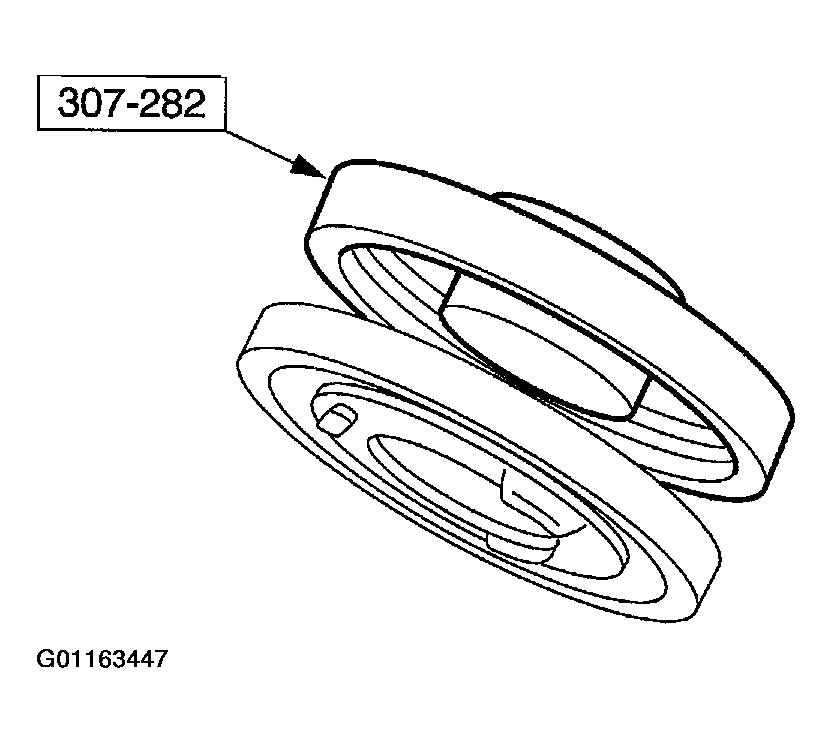

Install the coast clutch piston assembly onto the special tool.

Fig 4: Installing Coast Clutch Piston Assembly

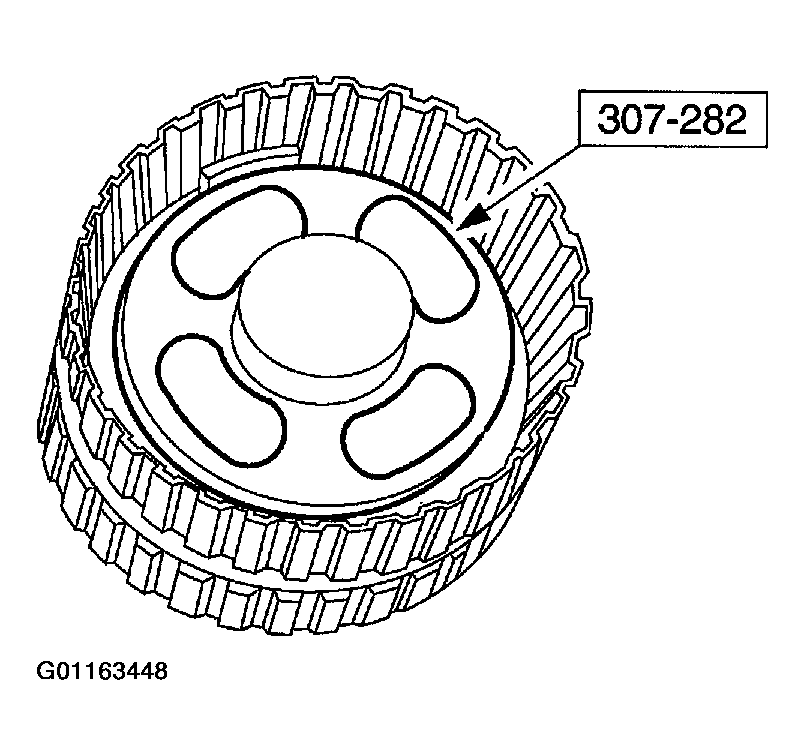

Using the special tool, install the coast clutch piston into the forward clutch piston assembly.

Fig 5: Installing Coast Clutch Piston

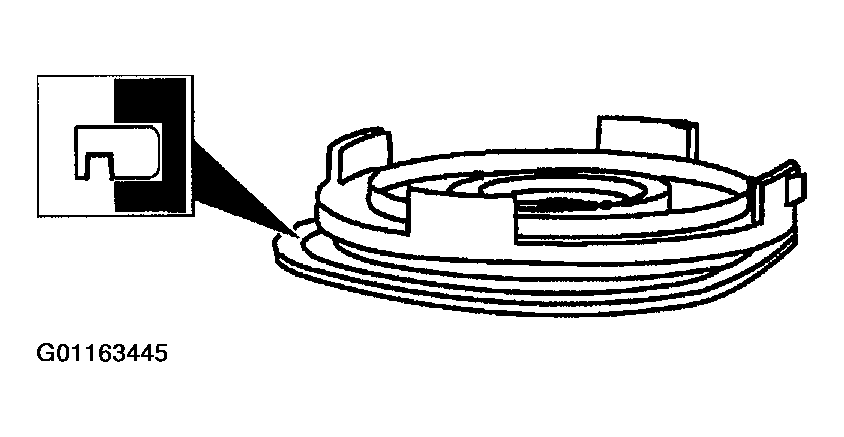

Install the forward/coast clutch return spring assembly.

Fig 6: Installing Forward/Coast Clutch Return Spring Assembly
