2001 Mazda Tribute ES, FWDFACTORY OEM SERVICE PROCEDURE

Assembly Note

Position the No. 16 reverse/overdrive ring gear bearing on the special tools.
1. Position the bearing with the part number facing toward the handle of the special tool.
  NOTE:
  - The identification stamping of the bearing goes to the outboard side of the reverse/overdrive ring gear.

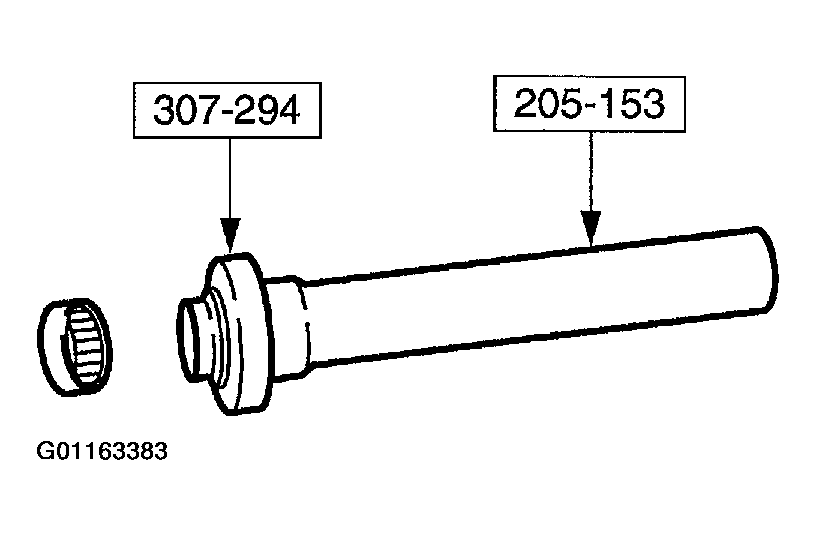

Fig 1: Positioning No. 16 Reverse/Overdrive Ring Gear Bearing
Using the special tools, install the No. 16 reverse/overdrive ring gear bearing.

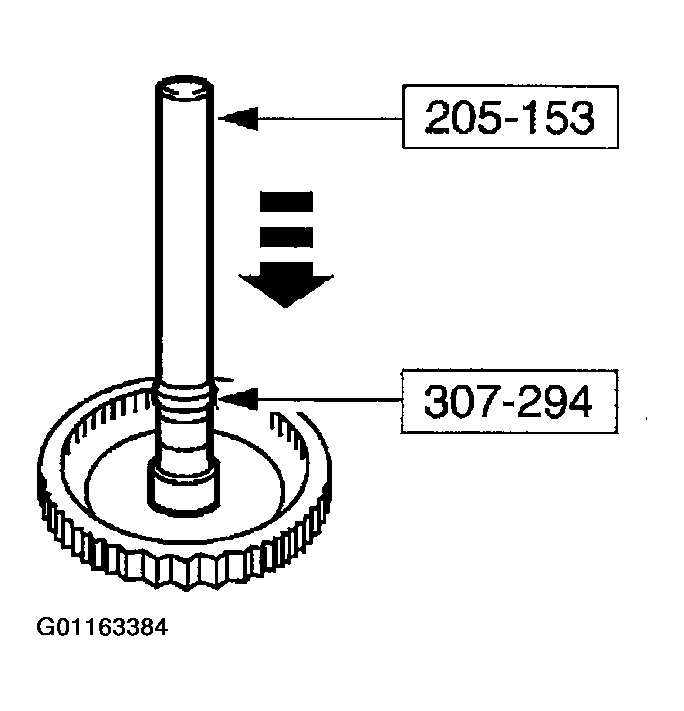

Fig 2: Installing No. 16 Reverse/Overdrive Ring Gear Bearing
Position the No. 17 stator support bearing on the special tools.
1. Position the bearing with the part number facing toward the handle of the special tool.
  NOTE:
  - The identification stamping of the bearing goes to the outboard side of the reverse/overdrive ring gear.
Using the special tools, install the No. 17 stator support bearing into the stator support sprocket.

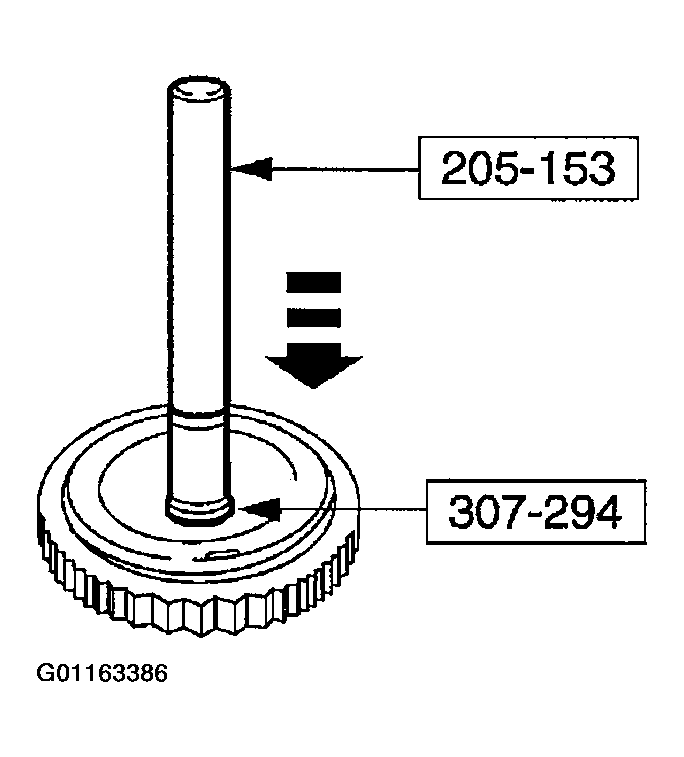

Fig 4: Installing No. 17 Stator Support Bearing
