2001 Mazda Protege MP3FACTORY OEM SERVICE PROCEDURE
Abs Hydraulic Unit (HU)/Control Module (Cm) Removal/Installation: Notes
CAUTION:
Do not drop the ABS Hydraulic Unit (HU)/Control Module (CM). Replace it if it is subjected to an impact.
- Remove the battery and battery tray.

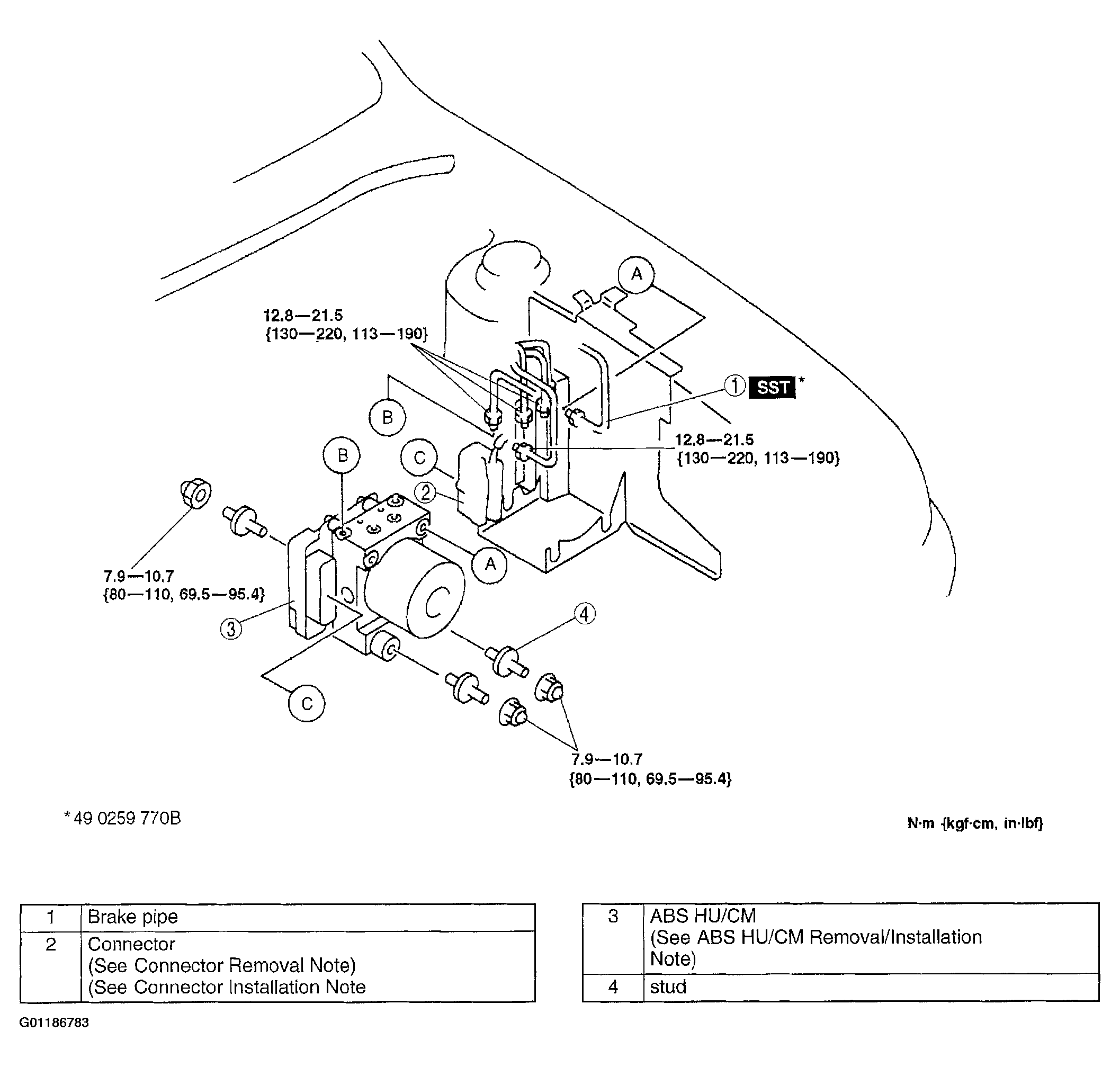

- Remove in the order indicated in the illustration.
- Install in the reverse order of removal.
