2001 Mazda MPV ESFACTORY OEM SERVICE PROCEDURE
Assembly Procedure

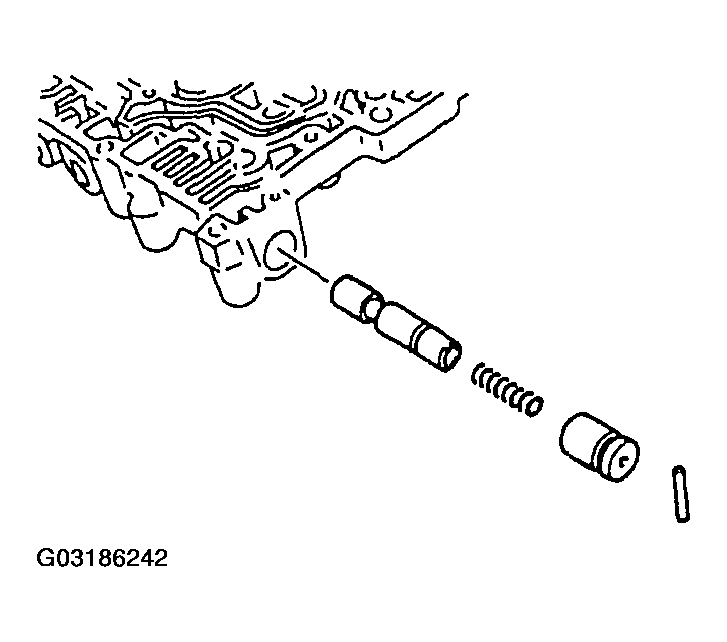

- Install the 2-3 timing valve, 2-3 timing spring, 2-3 timing plug, and stop pin.

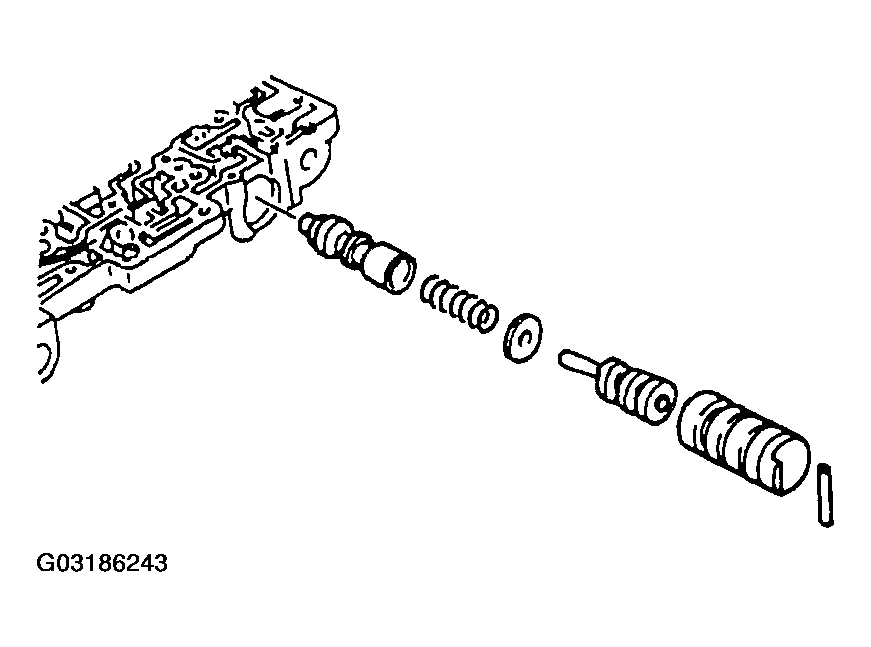

- Install the pressure regulator valve, pressure regulator spring, pressure regulator spring seat, pressure regulator plug, pressure regulator plug sleeve, and stop pin.

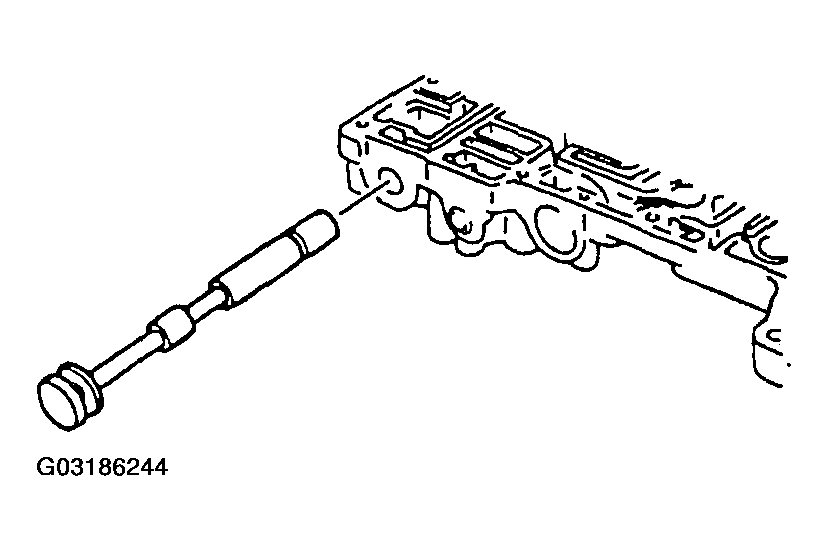

- Install the manual valve.
