2001 Mazda MPV ESFACTORY OEM SERVICE PROCEDURE
Disassembly Procedure
- Remove the torque converter, and immediately turn it so that the hole faces upward. This will help to keep any remaining fluid from spilling.
- Pull out the oil pump shaft by hand.
- Remove the oil dipstick and oil filler tube.
- Remove the O-ring from the oil filler tube.
- Remove the breather hose.

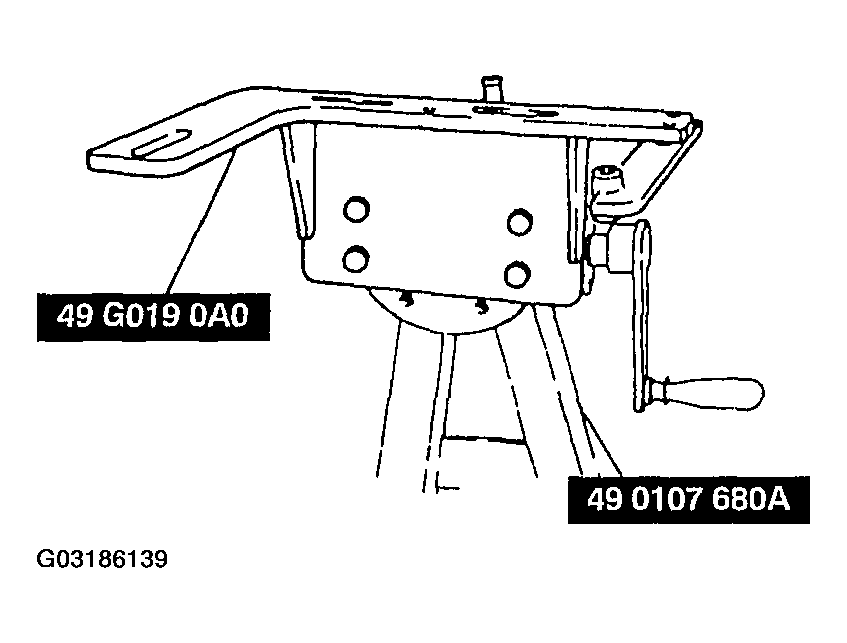

- Assemble the SST .

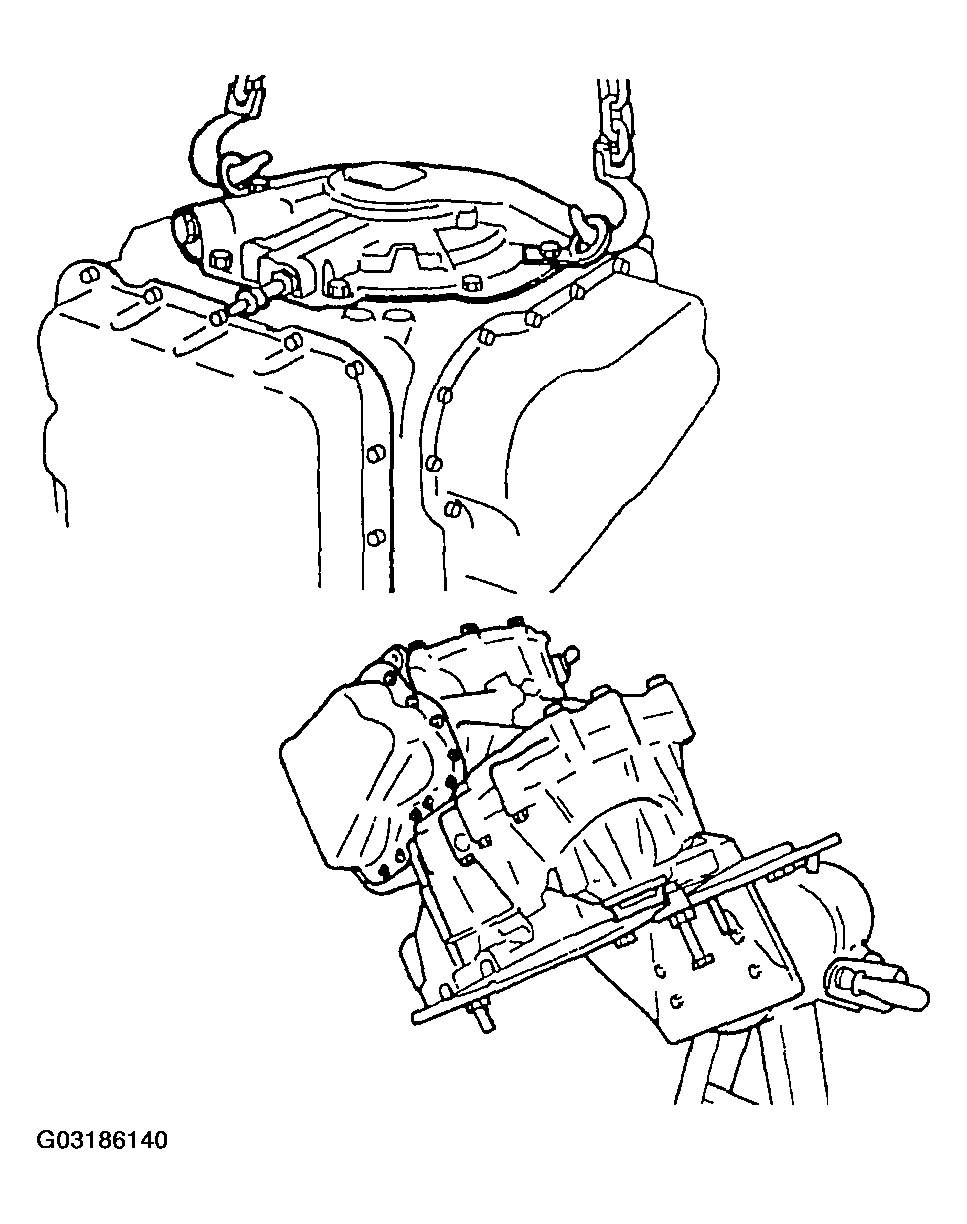

- Attach suitable hangers to the oil pump as shown.

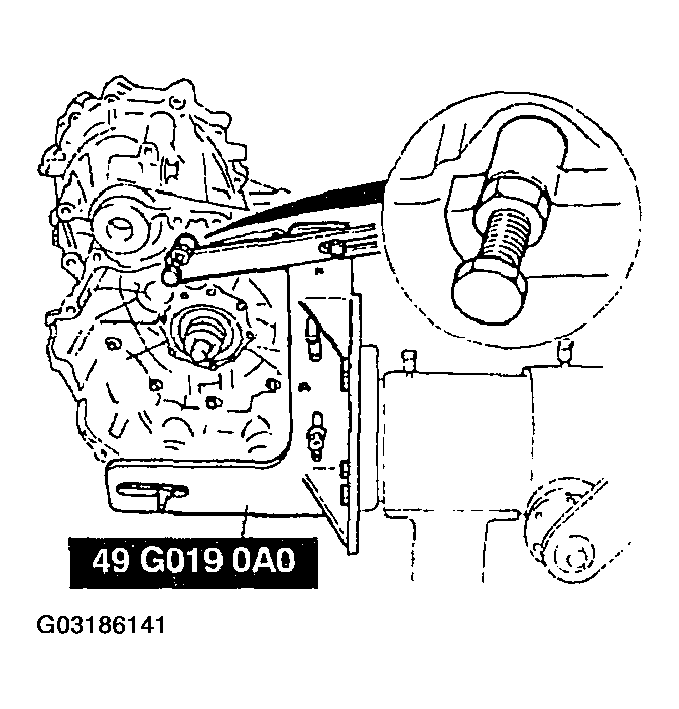

- Lift the transaxle and mount it on the SST .
