2001 Mazda MPV DXFACTORY OEM SERVICE PROCEDURE

Engine Performance: Application: Introduction: Introduction

2001 MODEL COVERAGE

MODEL ENGINE (1) ENGINE ID (2) FUEL SYSTEM IGNITION SYSTEM
B2300 2.3L 4-Cyl. (16-Valve) D SFI DIS
B2500 2.5L 4-Cyl. (8-Valve) C SFI DIS
B3000 3.0L V6 (12-Valve) U SFI DIS
B4000 4.0L V6 (12-Valve) X SFI DIS
Miata 1.8L 4-Cyl. (16-Valve) 3 SFI DIS
Millenia S 2.3L V6 (24-Valve) 2 SFI DIS
Millenia 2.5L V6 (24-Valve) 1 SFI Hall Effect
MPV 2.5L V6 (24-Valve) G SFI DIS
Protege 1.6L 4-Cyl. (16-Valve) 2 SFI DIS
2.0L 4-Cyl. (16-Valve) C SFI DIS
Tribute 2.0L 4-Cyl. (16-Valve) B SFI DIS
3.0L V6 (24-Valve) 1 SFI DIS
626 2.0L 4-Cyl. (16-Valve) C SFI DIS
2.5L V6 (24-Valve) D SFI DIS
(1) Engine may be identified by 8th character of Vehicle Identification Number (VIN).
(2) For location, see ENGINE CODE LOCATION .

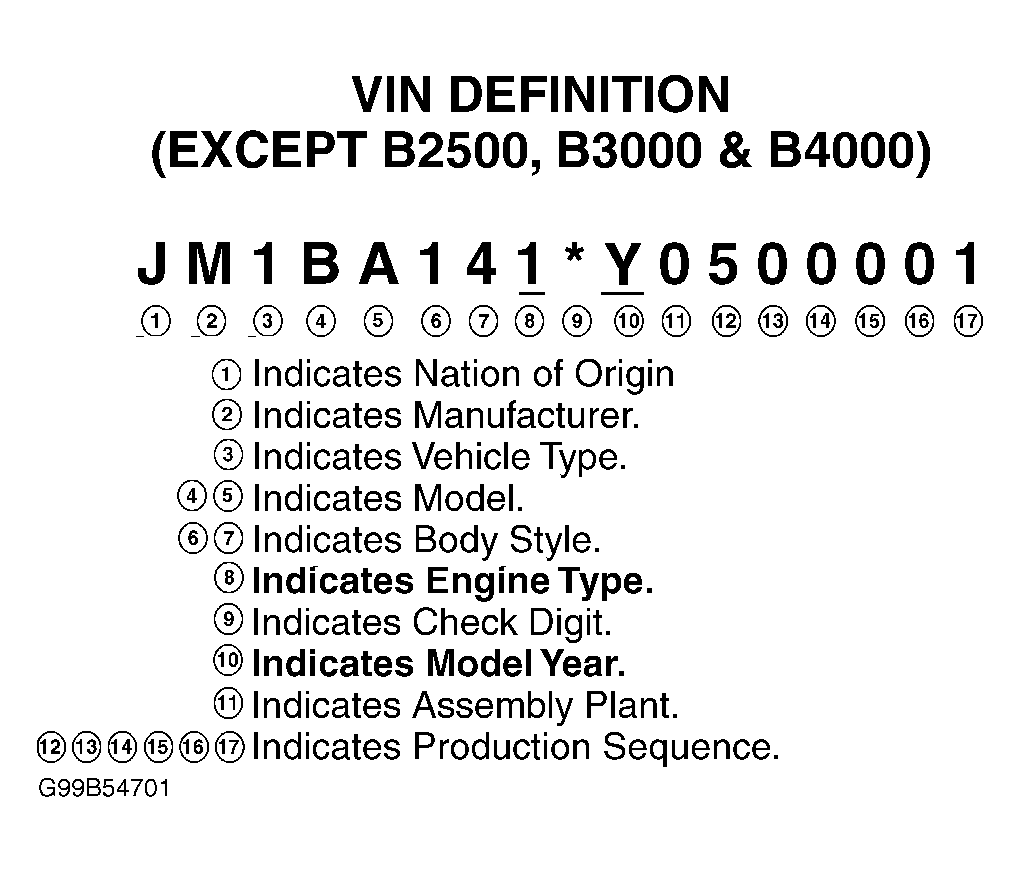

Fig 1: VIN Definition (Except B2500, B3000 & B4000)
G99B54701
