2000 Mazda MPV ESFACTORY OEM SERVICE PROCEDURE
Cruise Control Switch
WARNING: This page is about a different car, the 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
- Disable air bag system. See AIR BAG RESTRAINT SYSTEMS article. Disconnect negative battery cable.

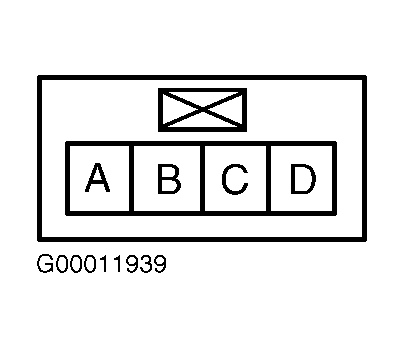

- Check resistance between specified terminals of cruise control switch with switch in specified position. See CRUISE CONTROL SWITCH RESISTANCE TEST table. See. If resistance is not as specified, replace cruise control switch.
CRUISE CONTROL SWITCH RESISTANCE TEST
| Switch Position | Terminals | Specification (1) | ||
|---|---|---|---|---|
| Cruise Control Switch On | A & B | Continuity Exists | ||
| SET/COAST | A & C | 198 Ohms | ||
| RESUME/ACCEL | A & C | 68 Ohms | ||
| CANCEL Switch Held On | A & C | 418 Ohms | ||
|
||||
