Cruise Control Switch

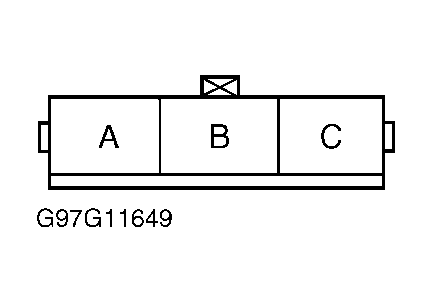

Deactivate air bag system. See AIR BAG RESTRAINT SYSTEMS article in RESTRAINTS. Remove driver's side air bag. Disconnect 3-pin cruise control switch harness connector. Check resistance between specified terminals of cruise control switch with switch in specified position. See CRUISE CONTROL SWITCH TEST table. See Fig 1 . If resistance is not as specified, replace cruise control switch.
| Switch Position | Terminals | Specification |
|---|---|---|
| CRUISE MAIN | A & C | Zero Ohms |
| OFF | A & B | Zero Ohms |
| SET/COAST | A & B | 240 Ohms |
| RESUME/ACCEL | A & B | 910 Ohms |
