2000 Mazda MPV ESFACTORY OEM SERVICE PROCEDURE

Component Locations

WARNING: This page is about a different car, the 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.

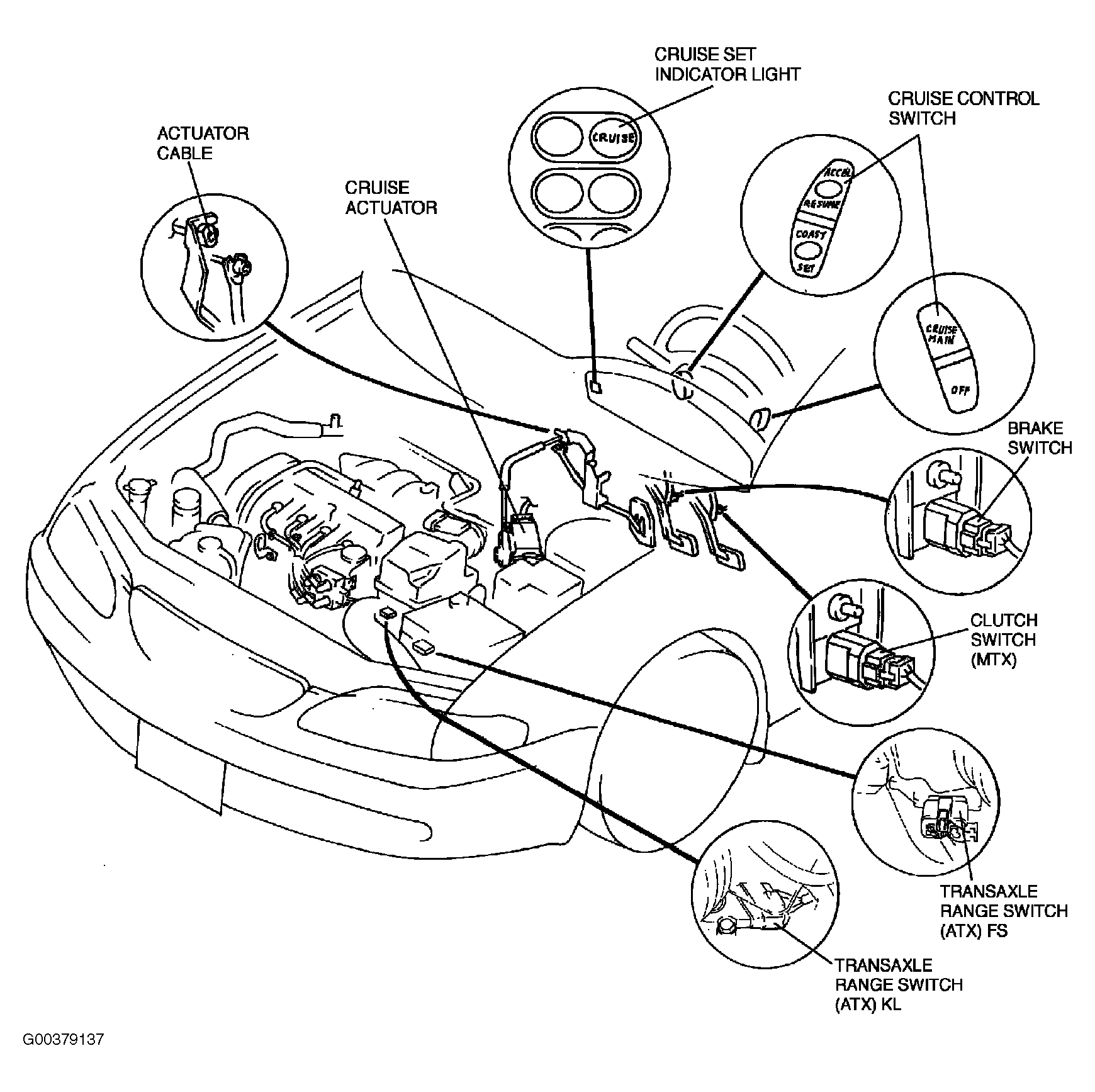

Fig 1: Component Locations

Courtesy of MAZDA MOTORS CORP.

COMPONENT LOCATIONS

Component	Location
Actuator	Left Rear Corner Of Engine Compartment
Brake Switch	On Brake Pedal Bracket
Clutch Switch (M/T)	On Clutch Pedal Bracket
Cruise Control Switch(es)	On Steering Wheel
Transmission Range Switch (A/T)	On Top Of Transaxle
Vehicle Speed Sensor	On Transmission
