2000 Mazda MPV ESFACTORY OEM SERVICE PROCEDURE
Keyless Control Module Removal/Installation
WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable.
- Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)

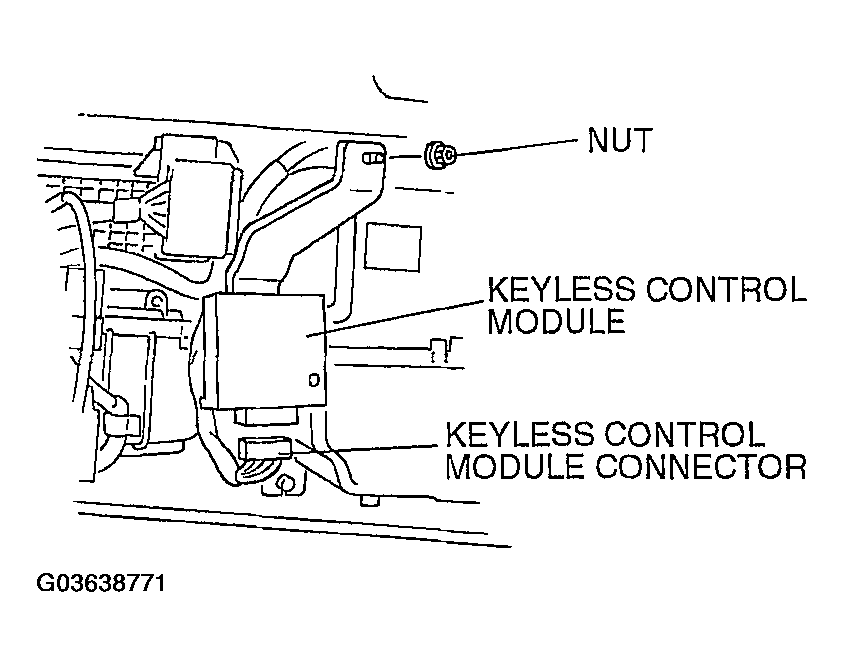

- Disconnect the keyless control module connector.
- Remove the nut to remove the keyless control module and the bracket as a module.

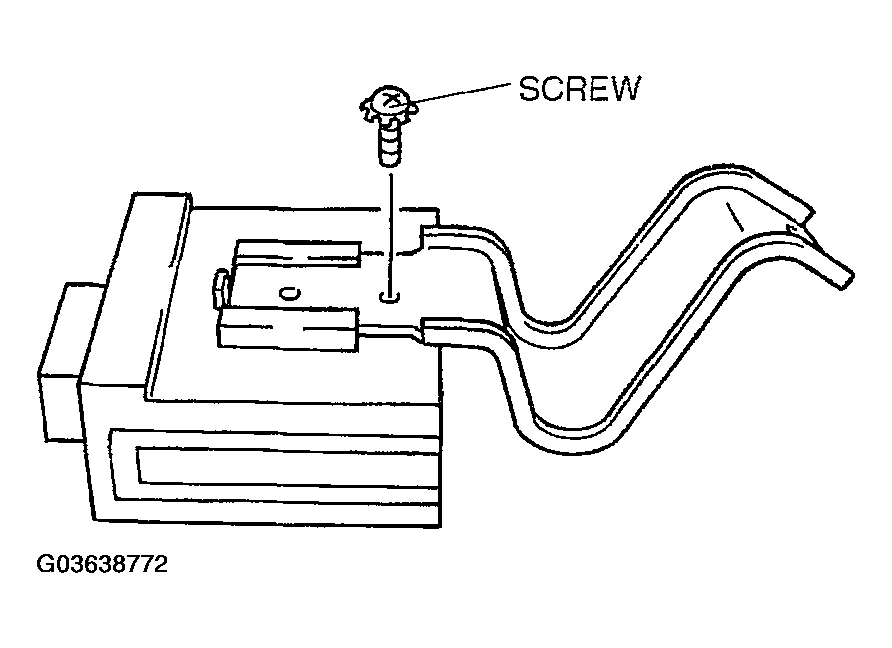

- Remove the screw.

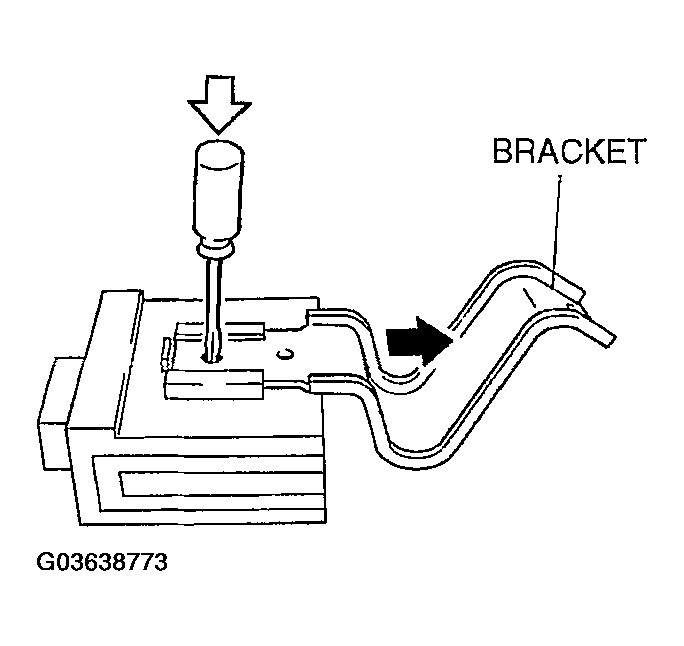

- Remove the bracket.
- Install in the reverse order of removal.
