2000 Mazda MPV ESFACTORY OEM SERVICE PROCEDURE

Climate Control Unit Removal

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Disconnect the air intake wire from the blower unit.
  3. Disconnect the air mix wire and airflow mode wire from the heater unit.
  4. Remove the hole covers by inserting a small, tape-wrapped, flathead screwdriver into the slot, then carefully prying them off without scratching the center panel. Pry up and pull off the hole covers carefully to prevent the posts from breaking off.

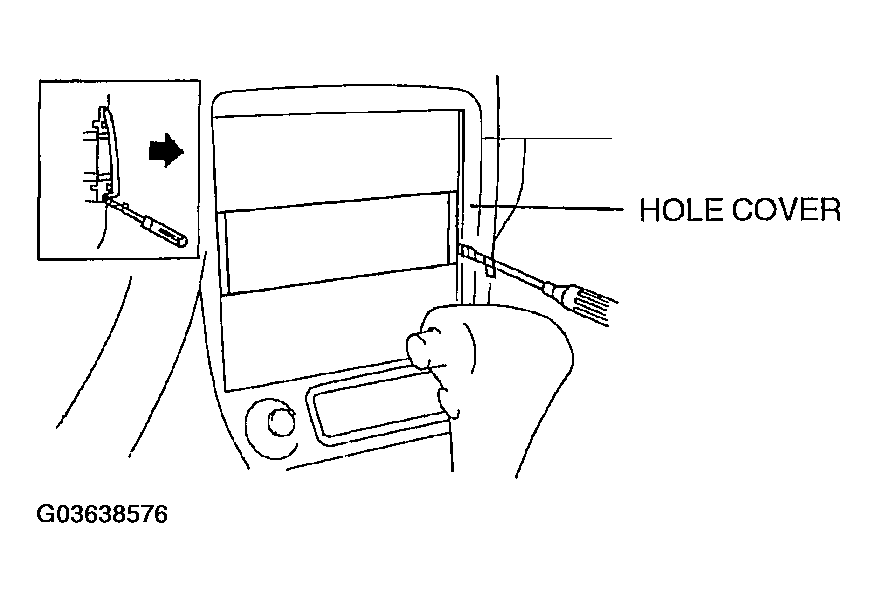

    Fig 1: Removing Hole Covers
    G03638576Courtesy of MAZDA MOTORS CORP.
  5. With the beveled parts of the SST  (Removing Tool) facing inward, insert them into the climate control unit.
  6. Pull the SST  (Removing Tool) outward and rearward to slide out the climate control unit.

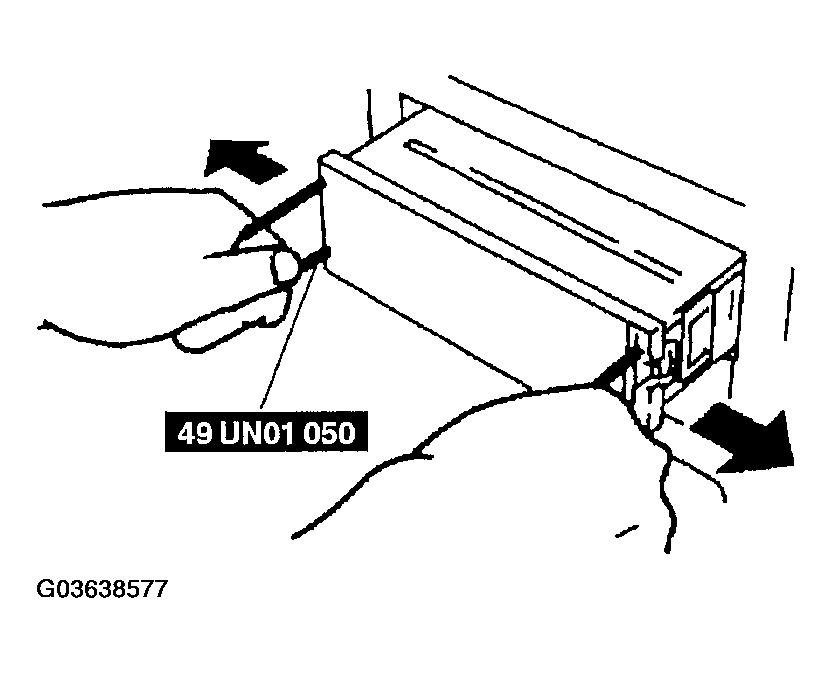

    Fig 2: Sliding Out Climate Control Unit
    G03638577Courtesy of MAZDA MOTORS CORP.
  7. Disconnect the climate control unit connectors.
