2000 Mazda MPV ESFACTORY OEM SERVICE PROCEDURE
Pcm Removal/Installation
WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable.
- Disconnect the connector from the PCM installed on the upper part of the brake pedal.

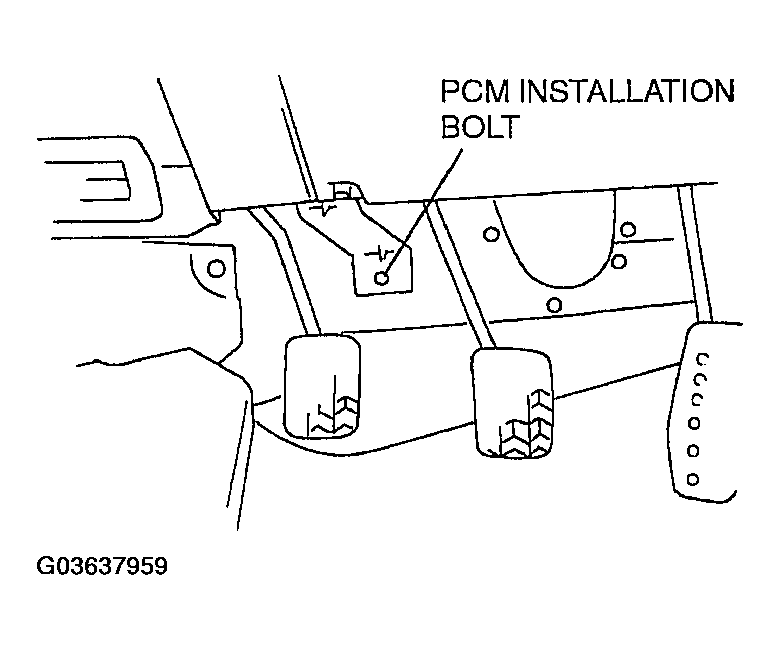

- Remove the bolt and nut holding the PCM.

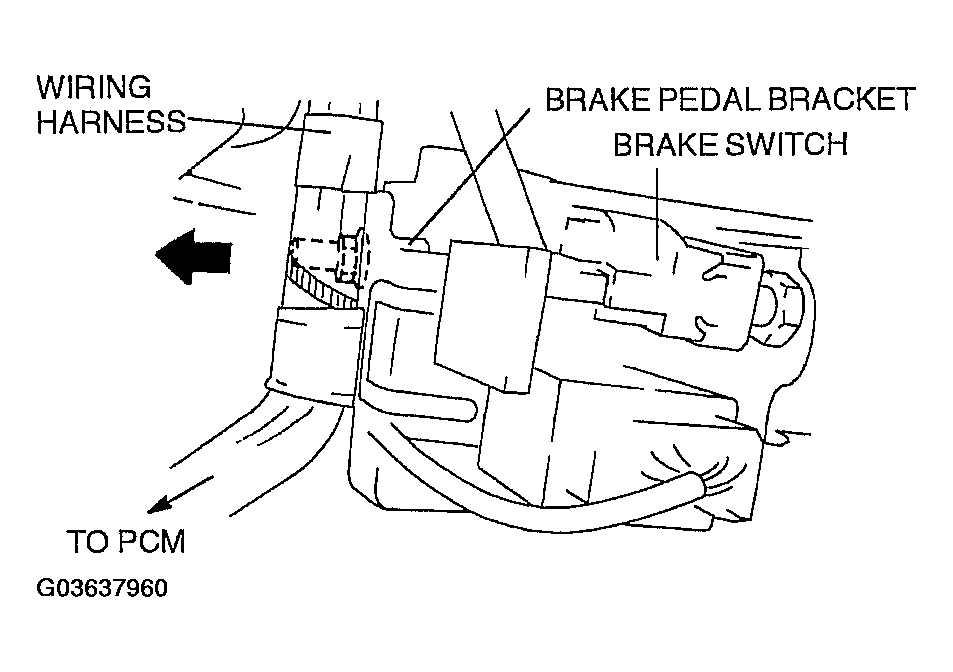

- Push the harness (PCM harness) installed to the brake pedal bracket in the opposite direction of the brake pedal bracket.

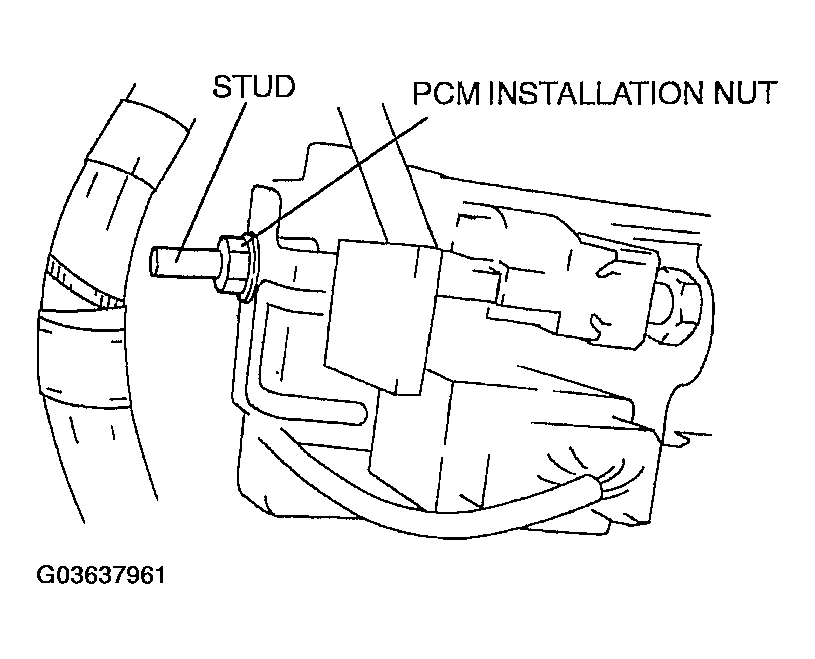

- While pushing the harness, push the stay until it comes apart from the stud with the PCM installation nut.
- Remove the PCM installation nut.
- Install in the reverse order of removal.
Tightening torque
- Bolt, nut: 7.9-10.7 N.m {80-110 kgf.cm, 70-95.4 in.lbf}
