2000 Mazda MPV ESFACTORY OEM SERVICE PROCEDURE
To Determine If The Sensor Is Functioning
WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
- Start the engine.
- Turn the A/C switch on.
- Turn the front fan switch on.

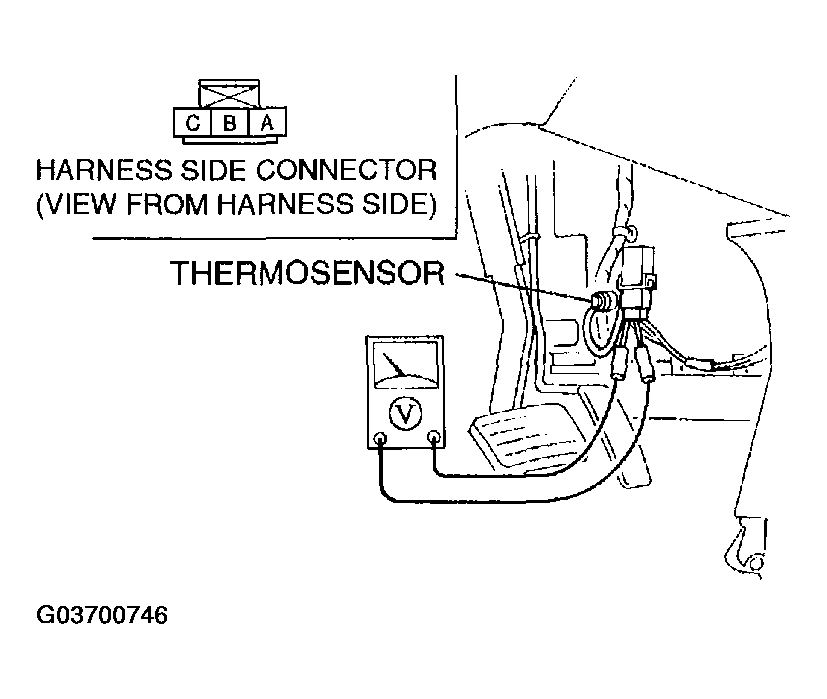

- Connect the positive (+) and negative (-) probes of the tester to terminal A and terminal C of the thermosensor respectively. (The wiring harness connector must be connected to the thermosensor connector.)
- Inspect the voltage as shown below.
- If there is any malfunction, inspect on/off points of the thermosensor.
Magnetic clutch Voltage (V) On B+ Off 0
