2000 Mazda MPV ESFACTORY OEM SERVICE PROCEDURE

Key Replacement

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Perform this procedure to erase a previously programmed key code and register a new key.
  • If a new key code is programmed by following this procedure, the engine will not start using the previously programmed keys. The keys need to be re-programmed.

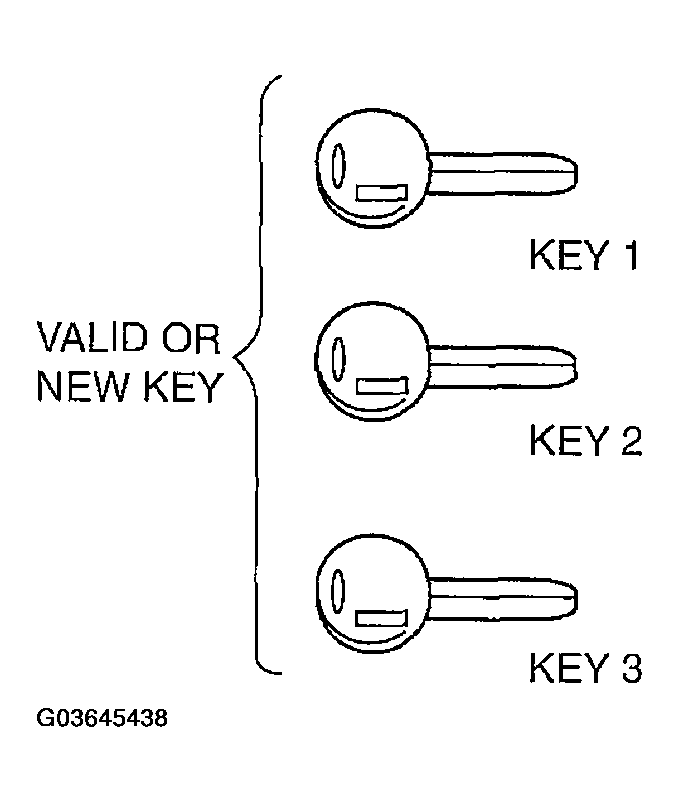

    Fig 1: Identifying Key Replacement
    G03645438Courtesy of MAZDA MOTORS CORP.
  1. Cut new transponder equipped key(s) if necessary.
  2. Connect the SST  (WDS or equivalent).
  3. Using key 1, turn ignition switch to the ON position.
    • Valid key: The security light illuminates, then turns off after approx. 3 seconds.
    • New key: The security light flashes rapidly for approx. 1 minute  and start displaying the DTC 15 (WDS or equivalent: DTC B1601).
    1. Perform security access approval. (See SECURITY ACCESS PROCEDURE  .)
    2. Select "Ignition Key Code Erase".
      NOTE:
      • Do not select any other command from this menu.
    3. Turn key 1 to the LOCK position for more than 1 second.
    4. Turn key 1 to the ON position for more than 3 seconds.
      NOTE:
      • Security light will remain illuminated as long as key is in the ON position.
    5. Remove key 1 from the steering lock.
      NOTE:
      • After approx. 1 minute  security light: DTC 21 (WDS or equivalent: DTC B1213) is output
  4. Using key 2, turn ignition switch to the ON position for more than 3 seconds  . Observe that security light illuminates (for approx. 3 seconds  ).
    1. Verify that the security light is not illuminated, then turn key 2 to the LOCK position and remove from the steering lock.
  5. If there are 3-8 keys (valid and/or new keys), repeat Step  4 .
  6. Verify that the engine starts using the programmed key.
