2000 Mazda MPV ESFACTORY OEM SERVICE PROCEDURE

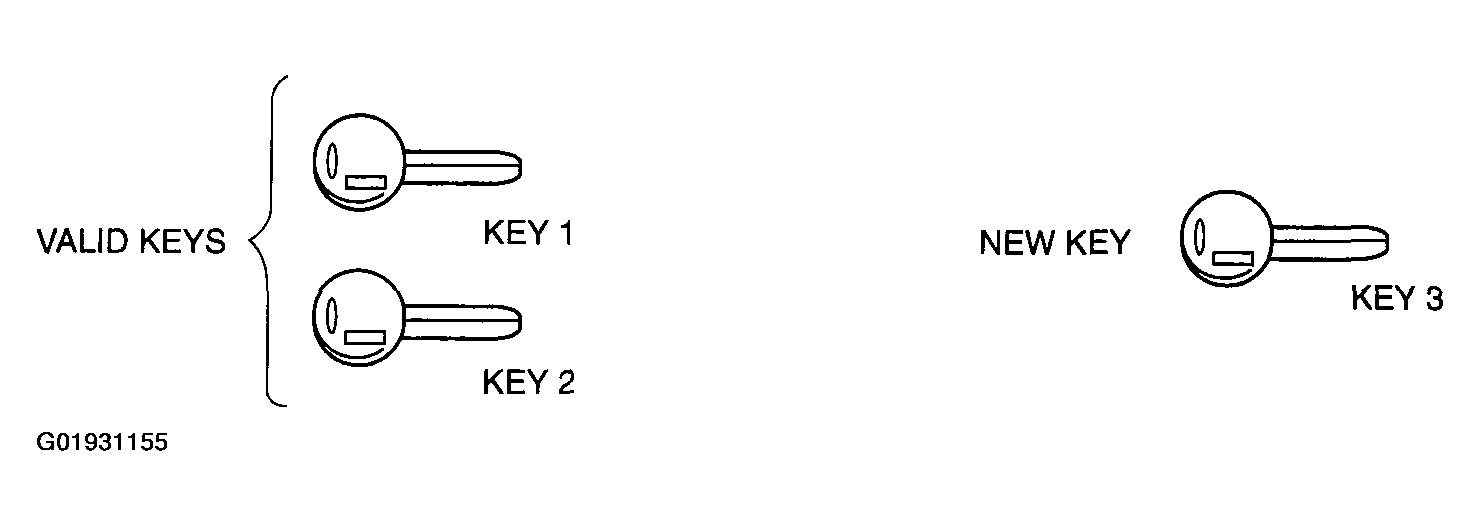

When the customer has two or more valid keys
WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
- Cut new transponder-equipped key(s).
- Using key 1, turn ignition switch to ON position.
- Observe illumination of security light in instrument cluster.
- After the security light turns off (after approx. 3 seconds from when ignition switch is turned to the ON position), turn key 1 to the LOCK position within approx. 4 seconds and remove it from the steering lock.
- Repeat Step 2 with key 2.
- Repeat Step 2 with key 3.
- If there are 4-8 keys (new keys), repeat Step 2.
- Verify that the engine starts using the registered key.
