2000 Mazda MPV ESFACTORY OEM SERVICE PROCEDURE
Front Map Light Inspection
WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the front map light. (See FRONT MAP LIGHT REMOVAL/INSTALLATION .)

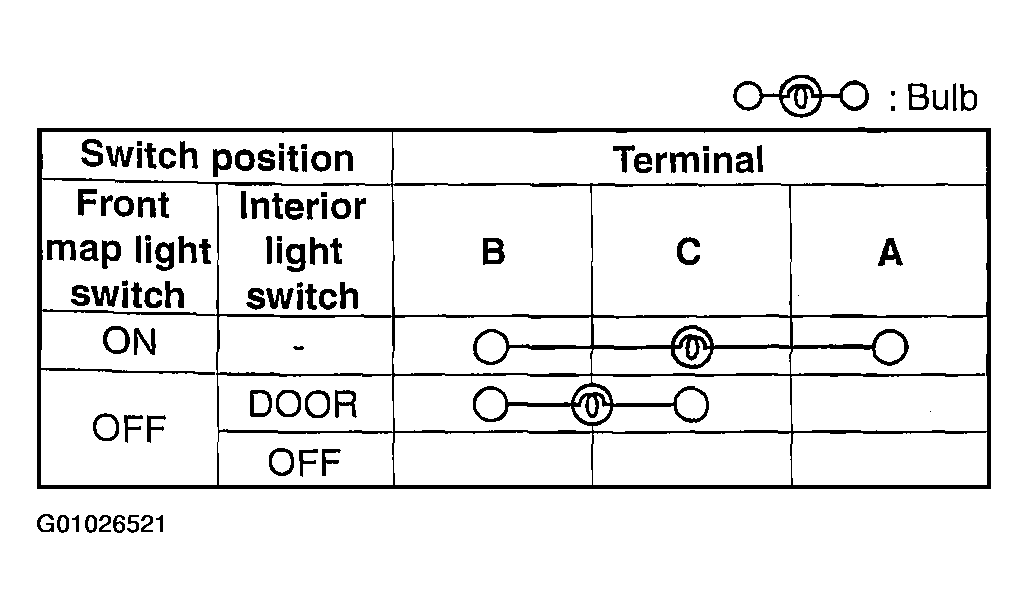

- Inspect for continuity between the front map light terminals using an ohmmeter.
- If not as specified, replace the front map light.
