2000 Mazda MPV ESFACTORY OEM SERVICE PROCEDURE

Combination Switch Disassembly/Assembly

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Disassemble in the order indicated in the illustration.

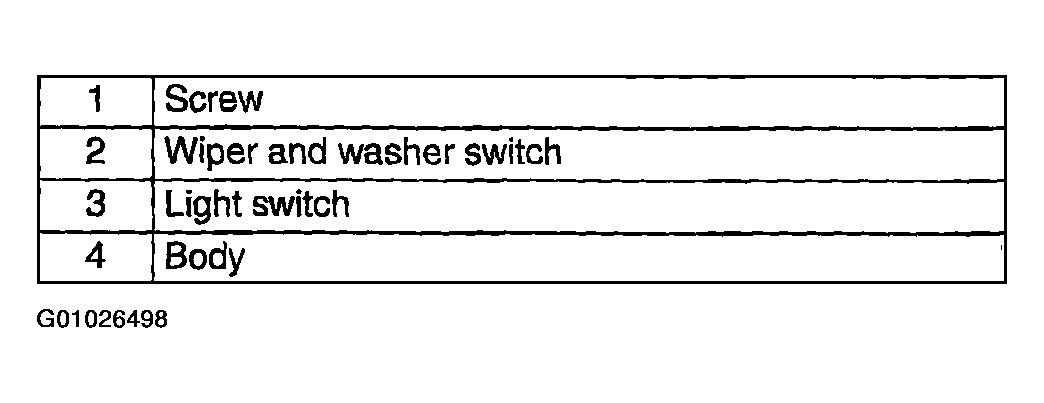

Fig 1: Disassembling Order Of Combination Switch
Courtesy of MAZDA MOTORS CORP.
Assemble in the reverse order of disassembly.

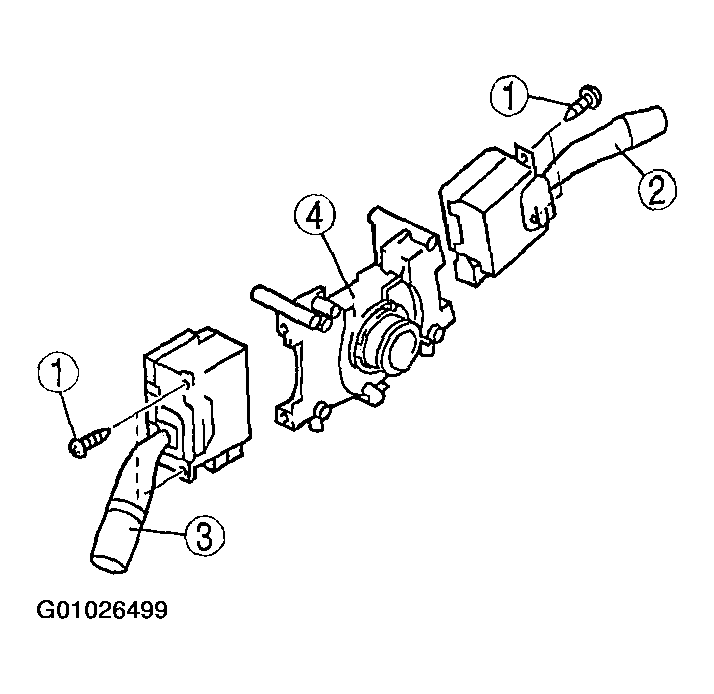

Fig 2: Disassembling/Assembling Combination Switch

Courtesy of MAZDA MOTORS CORP.
