2000 Mazda MPV ESFACTORY OEM SERVICE PROCEDURE
Removal & Installation
WARNING: This page is about a different car, the 2002 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the battery negative cable.
- Remove the air cleaner.
- Remove the air cleaner outlet pipe.

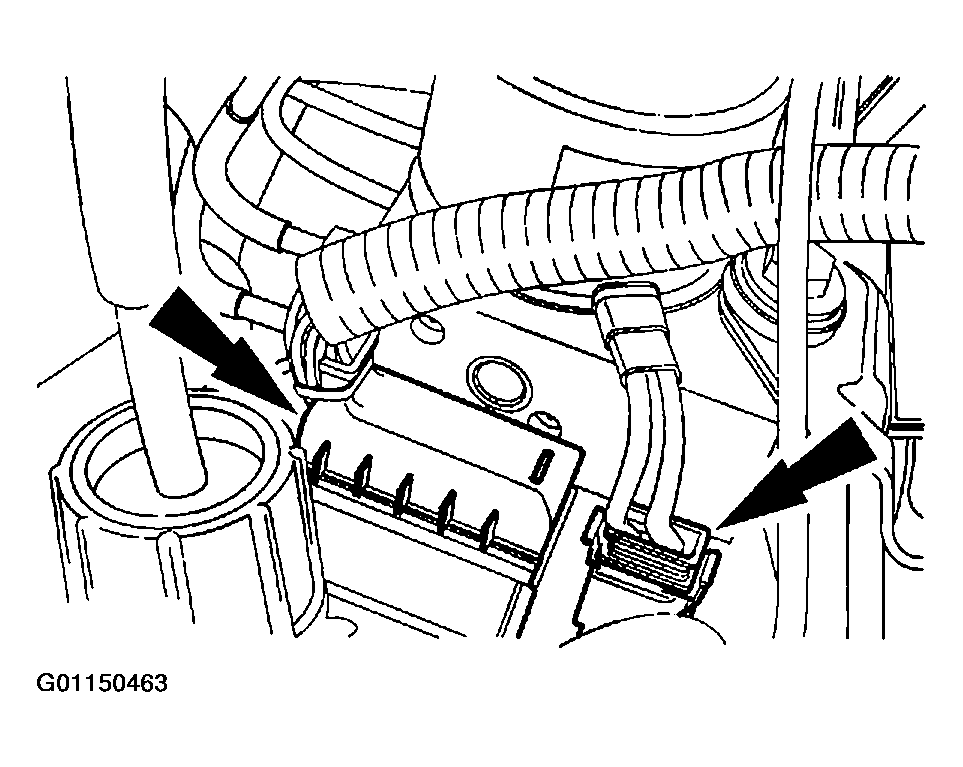

- Disconnect the electrical connectors.

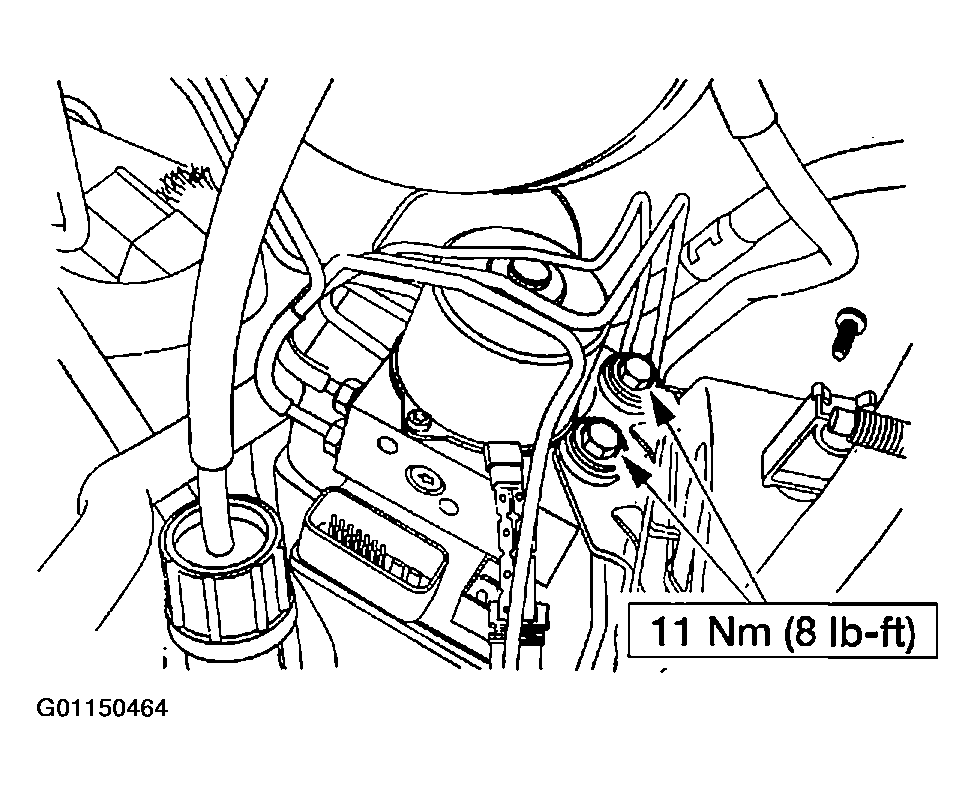

- Remove the bolts.

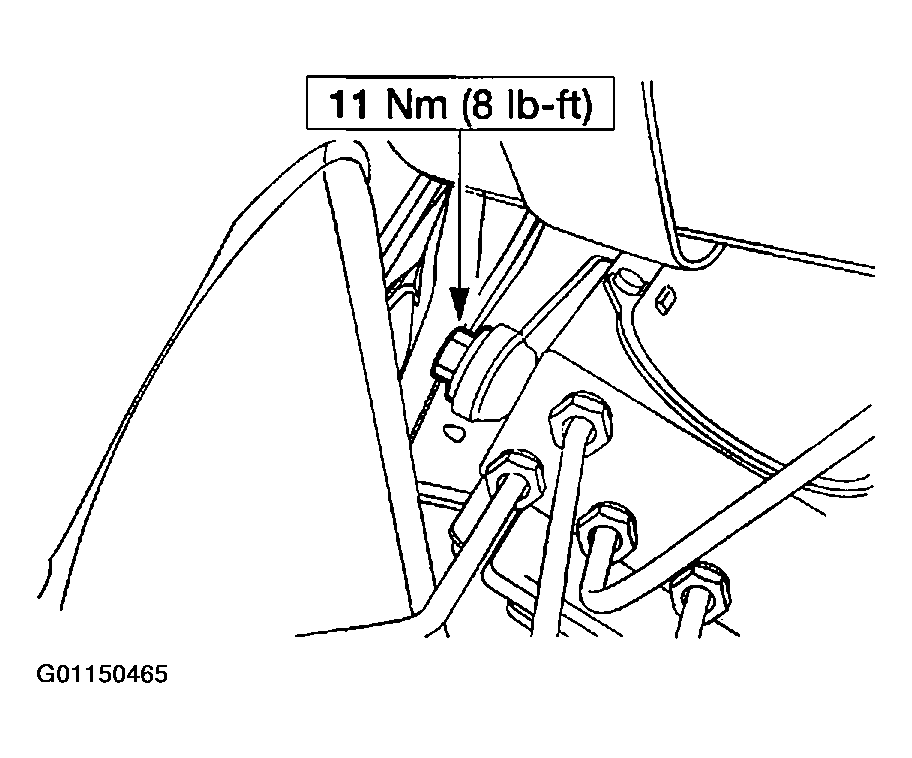

- Remove the bolt.
- Raise and support the vehicle.

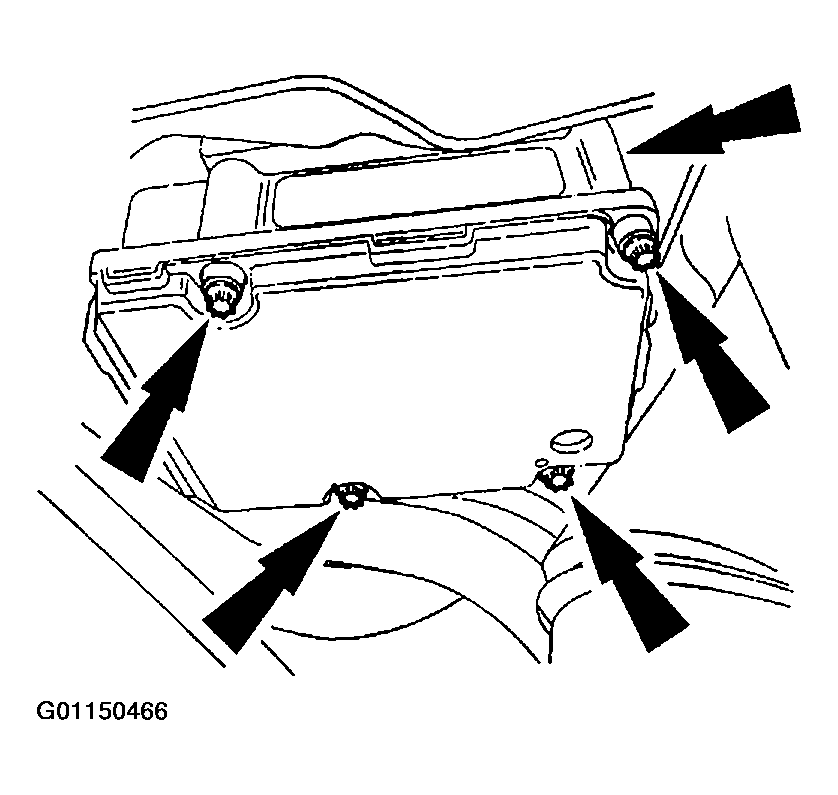

- Remove the screws and the control module.
- To install, reverse the removal procedure.
