2000 Mazda MPV ESFACTORY OEM SERVICE PROCEDURE
Anti-Lock Brake Control Module Diagnostic Trouble Code (DTC) Index
WARNING: This page is about a different car, the 2002 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

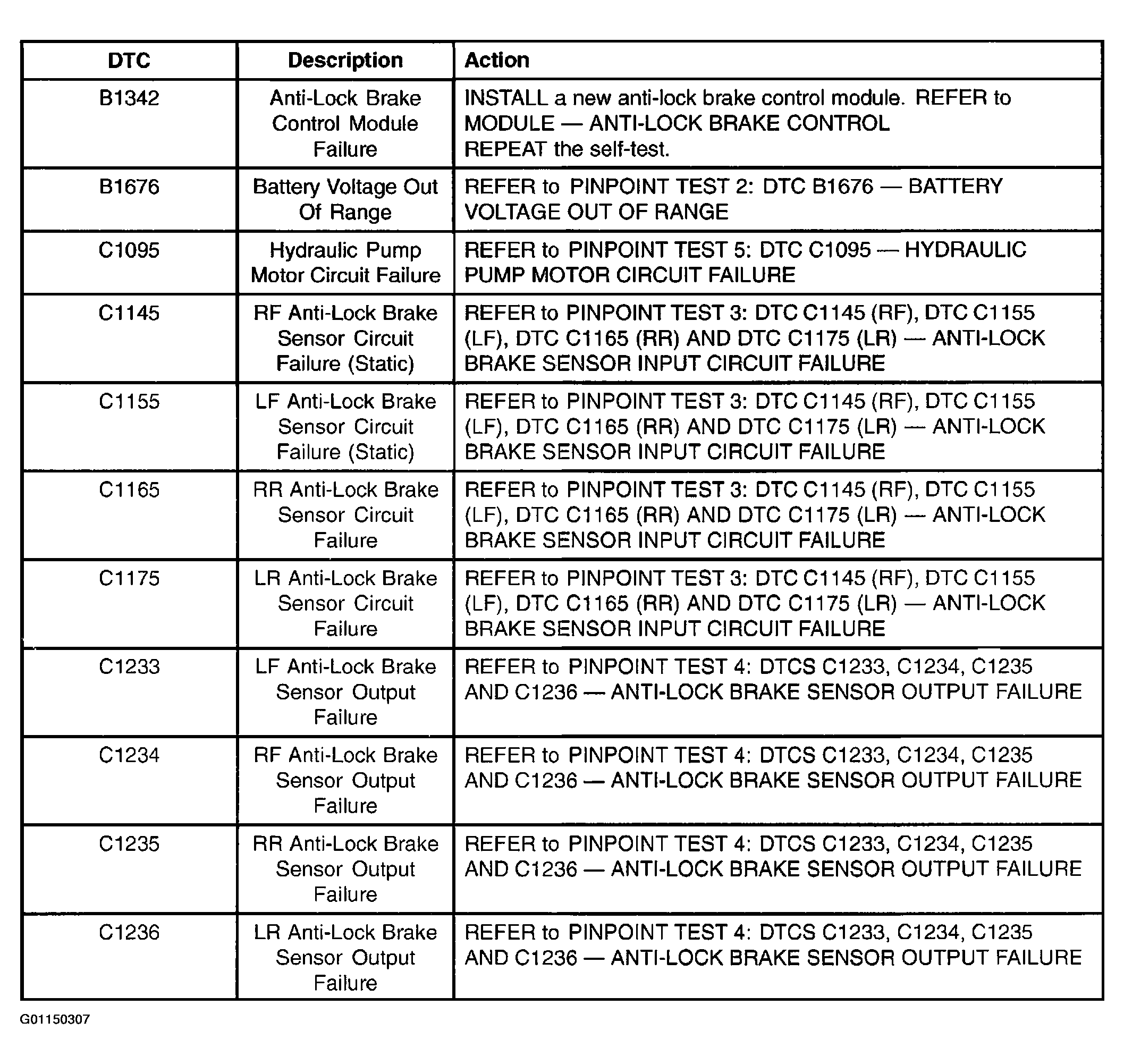

DIAGNOSTIC TROUBLE CODES (DTC) LIST
| DTC | Description | Pinpoint Test |
|---|---|---|
| NO COMMUNICATION | NO COMMUNICATION WITH THE MODULE - ANTI-LOCK BRAKE CONTROL MODULE | Pinpoint Test 1 |
| B1676 | BATTERY VOLTAGE OUT OF RANGE | Pinpoint Test 2 |
| C1145, C1155, C1165, C1175 | ANTI-LOCK BRAKE SENSOR INPUT CIRCUIT FAILURE | Pinpoint Test 3 |
| C1233, C1234, C1235, C1236 | ANTI-LOCK BRAKE SENSOR OUTPUT FAILURE | Pinpoint Test 4 |
| C1095 | HYDRAULIC PUMP MOTOR CIRCUIT FAILURE | Pinpoint Test 5 |
| NO DTCS | YELLOW ABS LIGHT ALWAYS ON | Pinpoint Test 6 |
