2000 Mazda MPV ESFACTORY OEM SERVICE PROCEDURE
Front Combination Light Removal Note
WARNING: This page is about a different car, the 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:

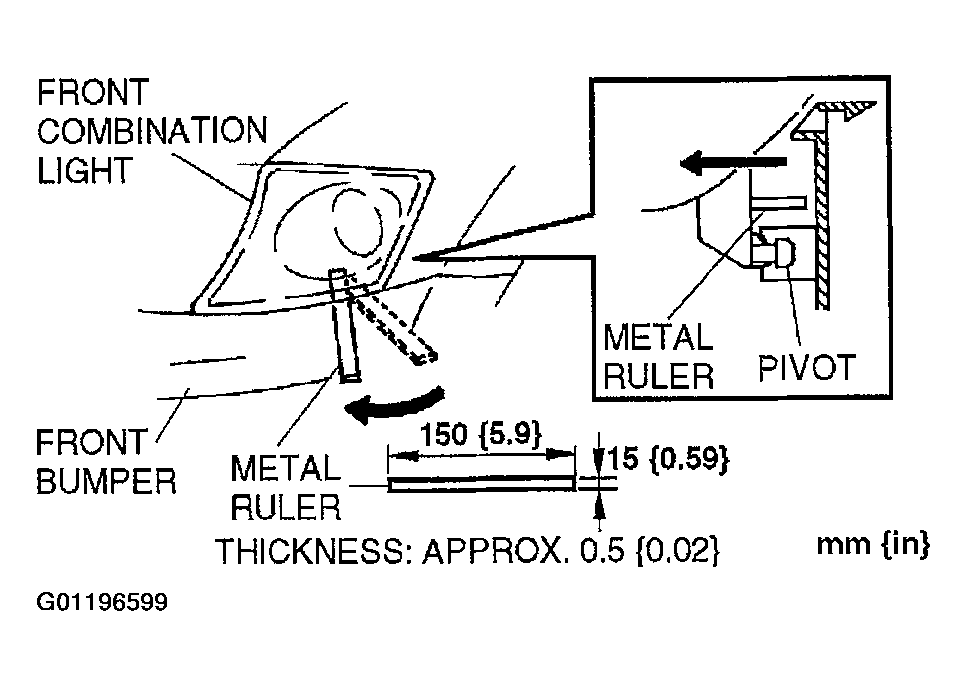

- To prevent the front combination light and bumper from being scratched, attach protective tape to the metal ruler and the bumper.
- Insert a 15 mm {0.59 in} maximum width metal ruler into the end of the front combination light approximately 75-80 mm {3.0-3.1 in} . Rotate the metal ruler towards the front of the vehicle and remove the front combination light.
