NOTE: Prior to performing generator testing, turn OFF all electrical components. Place transmission in NEUTRAL, apply parking brake.

Switch the battery tester to the ammeter function.
Connect the positive and negative leads of the battery tester to the corresponding battery terminals.
Connect the current probe to the generator B+ output terminal, circuit (Yellow/White wire).
With the engine running, turn the A/C on, the blower motor on high speed and the headlights on high beam.
Increase the engine speed to approximately 2000 RPM. The voltage should increase a minimum of 0.5 volt above the base voltage.
- If the voltage does not increase as specified, perform GENERATOR NO LOAD TEST .
- If the voltage increases as specified, the charging system is operating normally.

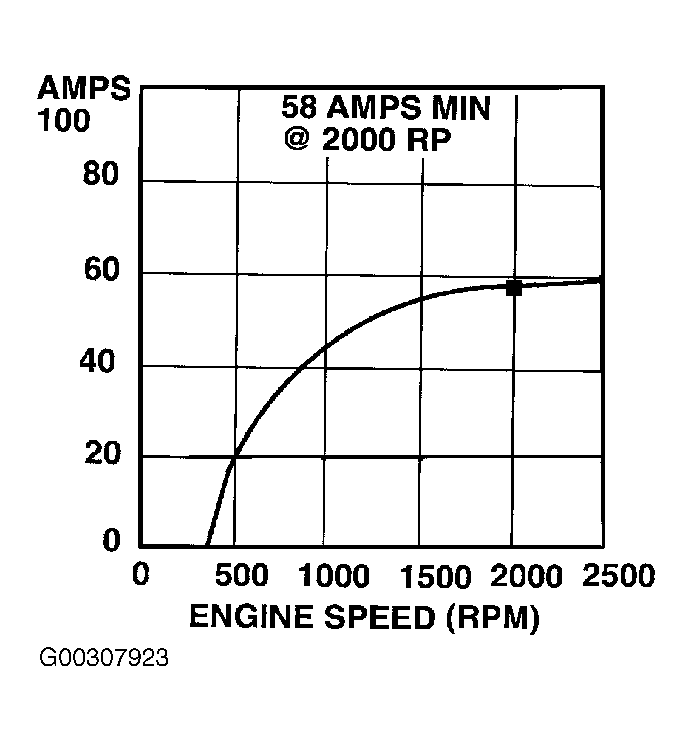

Adjust the tester load bank to determine the output of the generator. Generator output should be at least 58 amps. See Fig 1.

Fig 1: Identifying Generator Amperage Output

Courtesy of MAZDA MOTORS CORP.
