2000 Mazda MPV DXFACTORY OEM SERVICE PROCEDURE

Wheel Alignment Pre-Inspection

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Inspect the tire inflation, and adjust to the recommended pressure as necessary.
  2. Inspect the front wheel bearing play and correct as necessary. (See WHEEL BEARING PLAY .)
  3. Inspect the wheel and tire runouts. (See SUSPENSION TECHNICAL DATA [BP] .) (See SUSPENSION TECHNICAL DATA [BP WITH TC] .)
  4. Inspect the ball joints and steering linkage for excessive looseness.
  5. The vehicle must be on level ground and carry no luggage or passengers.
  6. Measure the height from the center of the wheel to the fender brim. The difference between the left and right measurement must not exceed 10 mm {0.39 in}.

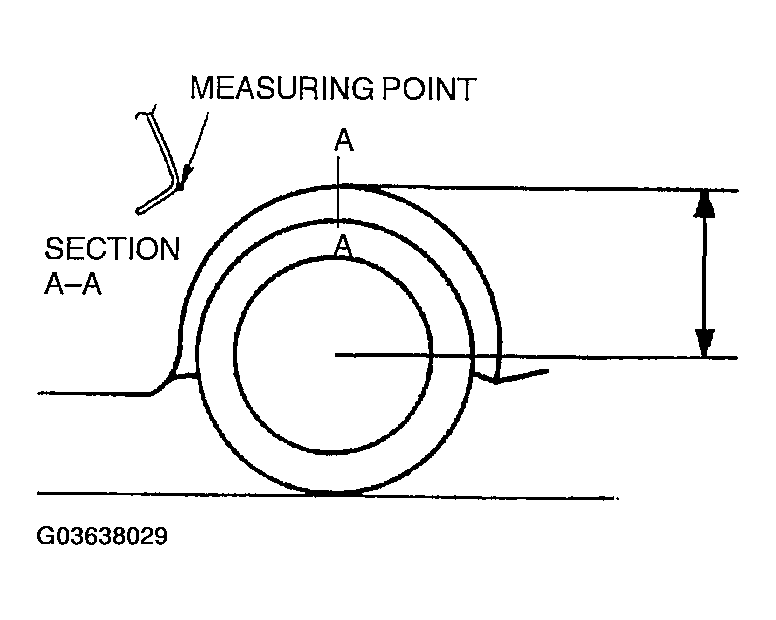

    Fig 1: Measuring Height From Center Of Wheel To Fender Brim
    G03638029Courtesy of MAZDA MOTORS CORP.
