2000 Mazda MPV DXFACTORY OEM SERVICE PROCEDURE
Cruise Control Main Switch Removal/Installation
WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable.
- Remove the fuse block cover.
- Remove the panel light control switch. (See PANEL LIGHT CONTROL SWITCH REMOVAL/INSTALLATION .)

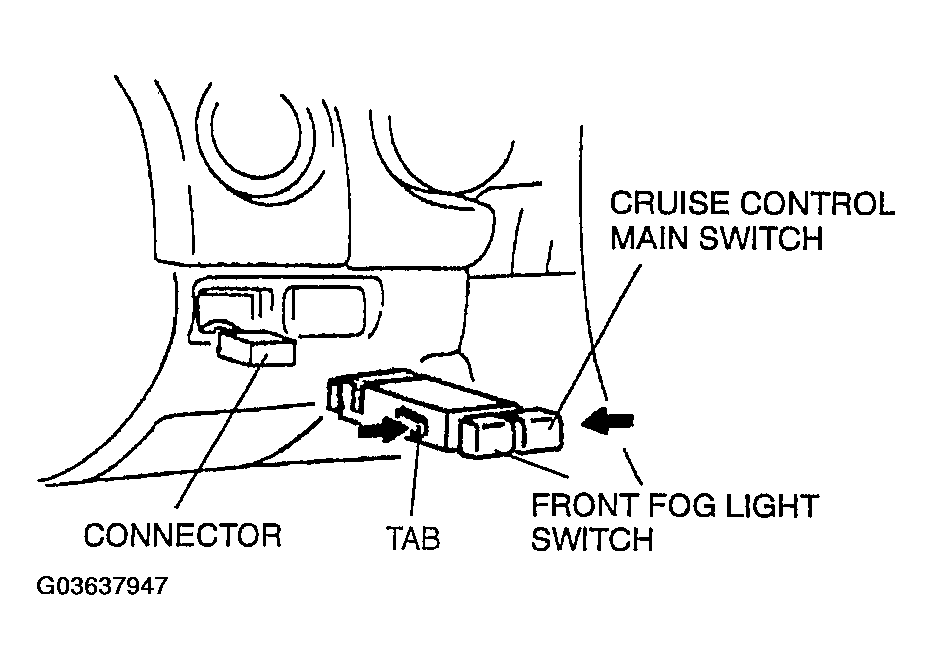

- Push the tabs of the cruise control main switch and pull the switch out from inside of the dashboard.
- Disconnect the cruise control main switch connector to remove the cruise control main switch.
- Install in the reverse order of removal.
