NOTE:

Additional keys can be programmed without having to erase the key codes already programmed.
If 8 keys have already been programmed, this procedure cannot be used to register a key. To register a key under this condition, it is necessary to first erase all the key codes. (See KEY REPLACEMENT )

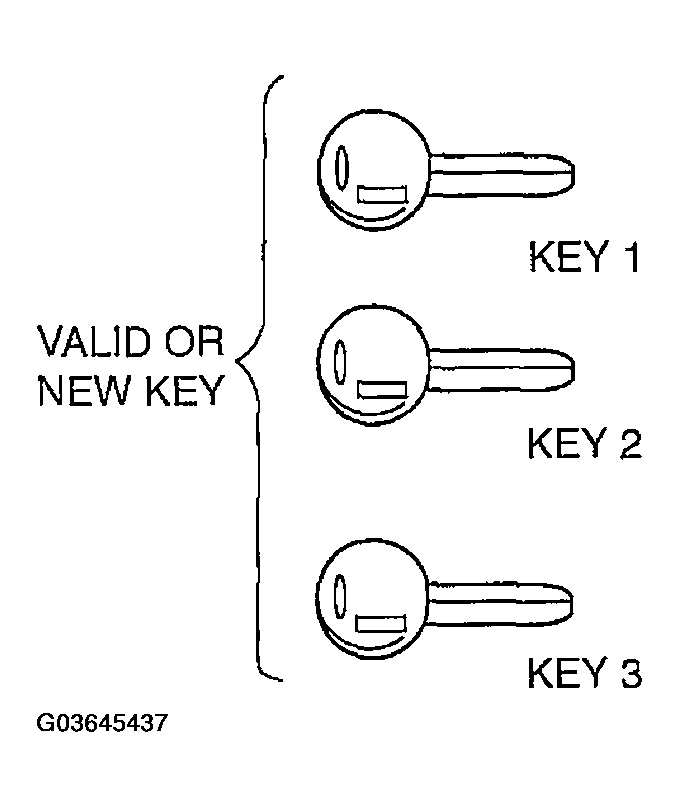

Fig 1: Identifying Valid Or New Key
Courtesy of MAZDA MOTORS CORP.

Cut new transponder equipped key(s) if necessary.
Connect the SST (WDS or equivalent).
Using key 1, turn ignition switch to the ON position.
- Valid key: The security light illuminates, then turns off after approx. 3 seconds.
- New key: The security light flashes rapidly for approx. 1 minute and start displaying the DTC 15 (WDS or equivalent: DTC B1601).
1. Perform security access approval. (See SECURITY ACCESS PROCEDURE .)
2. Select "Program additional ignition key".
3. Turn key 1 to the LOCK position and remove from the steering lock.
Using key 2, turn ignition switch to the ON position.
1. Select "Program additional ignition key".
2. Turn key 2 to the LOCK position and remove from the steering lock.
If there are 3-8 keys (new keys), repeat Step 4 .
Verify that the engine starts using the programmed key.
