2000 Mazda MPV DXFACTORY OEM SERVICE PROCEDURE
Climate Control Unit Removal
WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable.
- Disconnect the air mix wire from wire clamp and link. (Manual air conditioner)
- Remove the center panel. (See CENTER PANEL MODULE REMOVAL/INSTALLATION .)

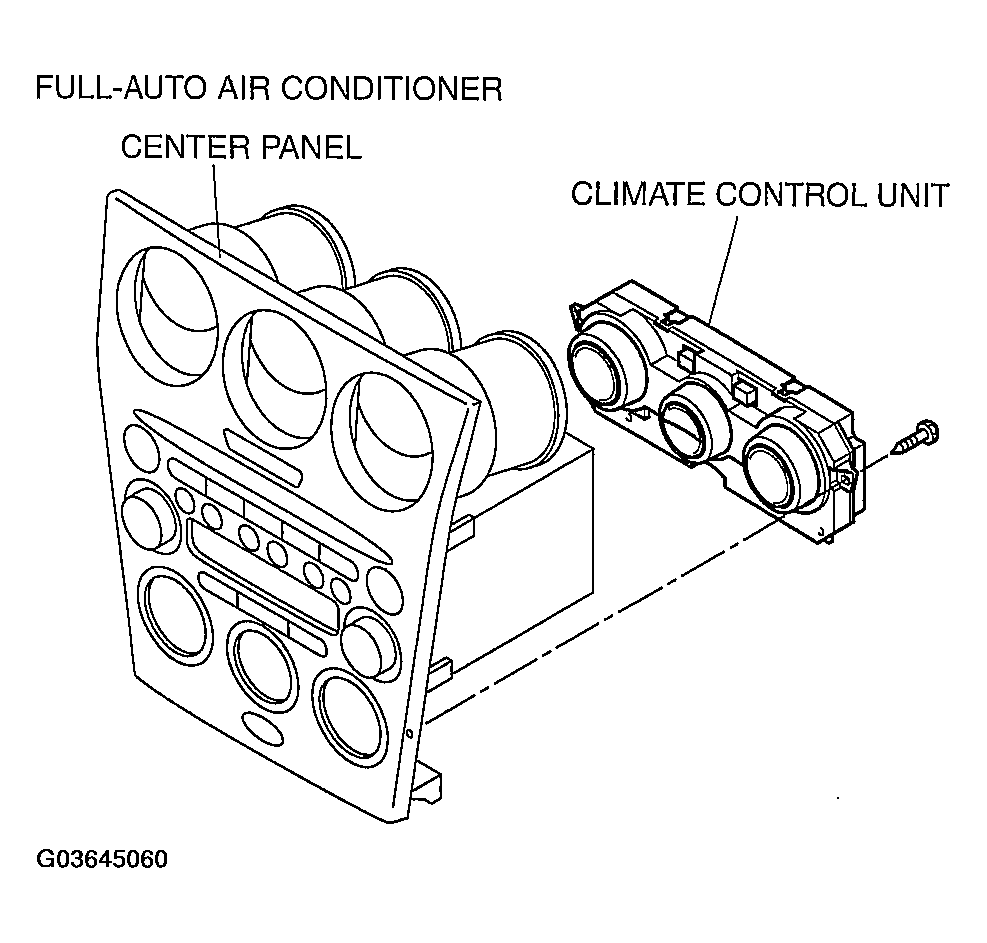

- Remove the screws and climate control unit. (Full-auto air conditioner)

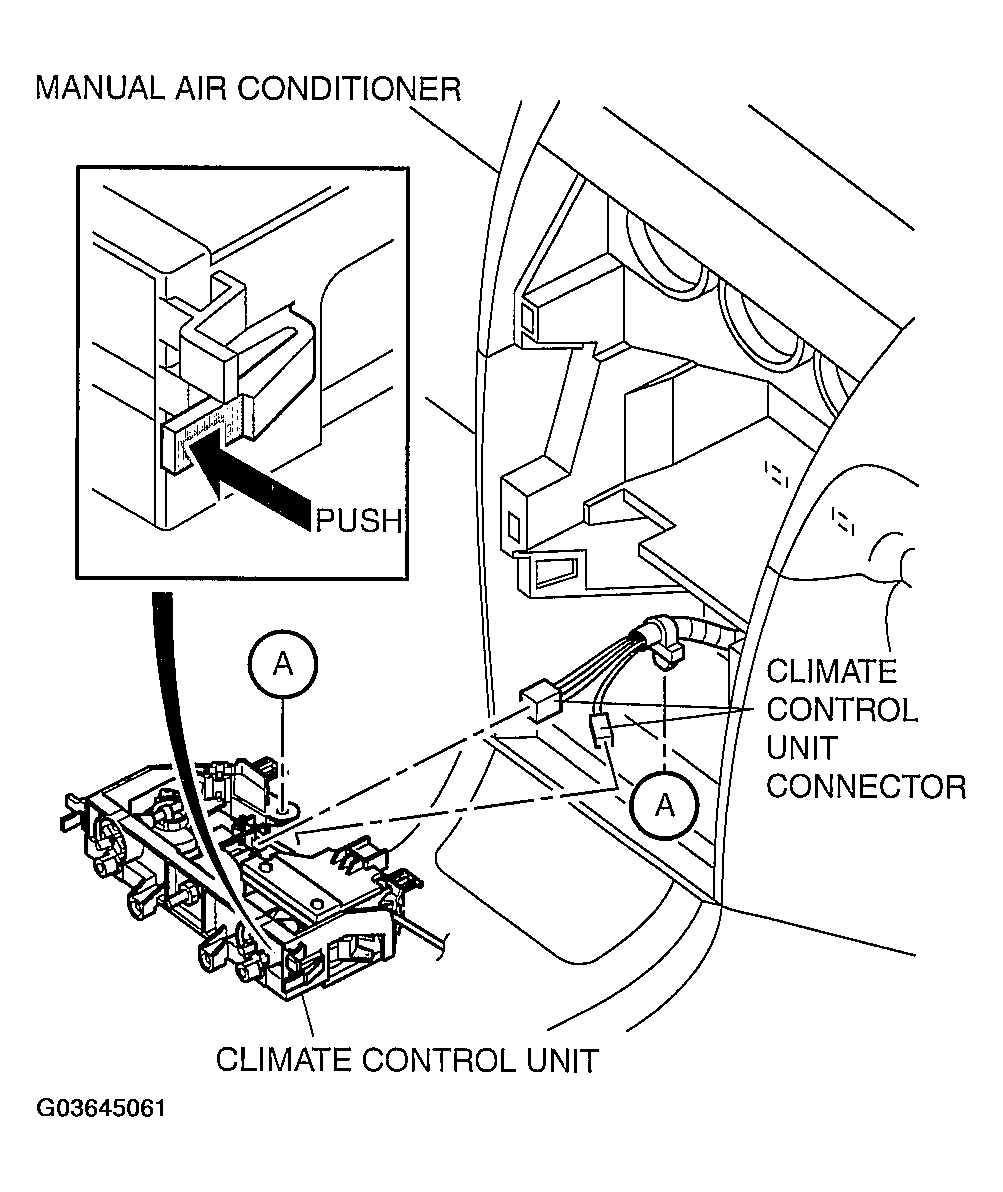

- Release the hook and pull the climate control unit toward you. (Manual air conditioner)
- Disconnect the climate control unit connectors and remove the climate control unit. (Manual air conditioner)
