Without Sliding Sunroof: Notes

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove in the order indicated in the table/figure.
    REMOVING/INSTALLING MAP LIGHT - WITHOUT SLIDING SUNROOF (OVERHEAD STORAGE COMPARTMENT) (1)

    Component/Step No. Component Description
    1 Screw
    2 Overhead Console
    3 Connector
    4 Lens (See LENS REMOVAL NOTE )
    5 Map light bulb
    6 Holder
    (1) See Fig 1.

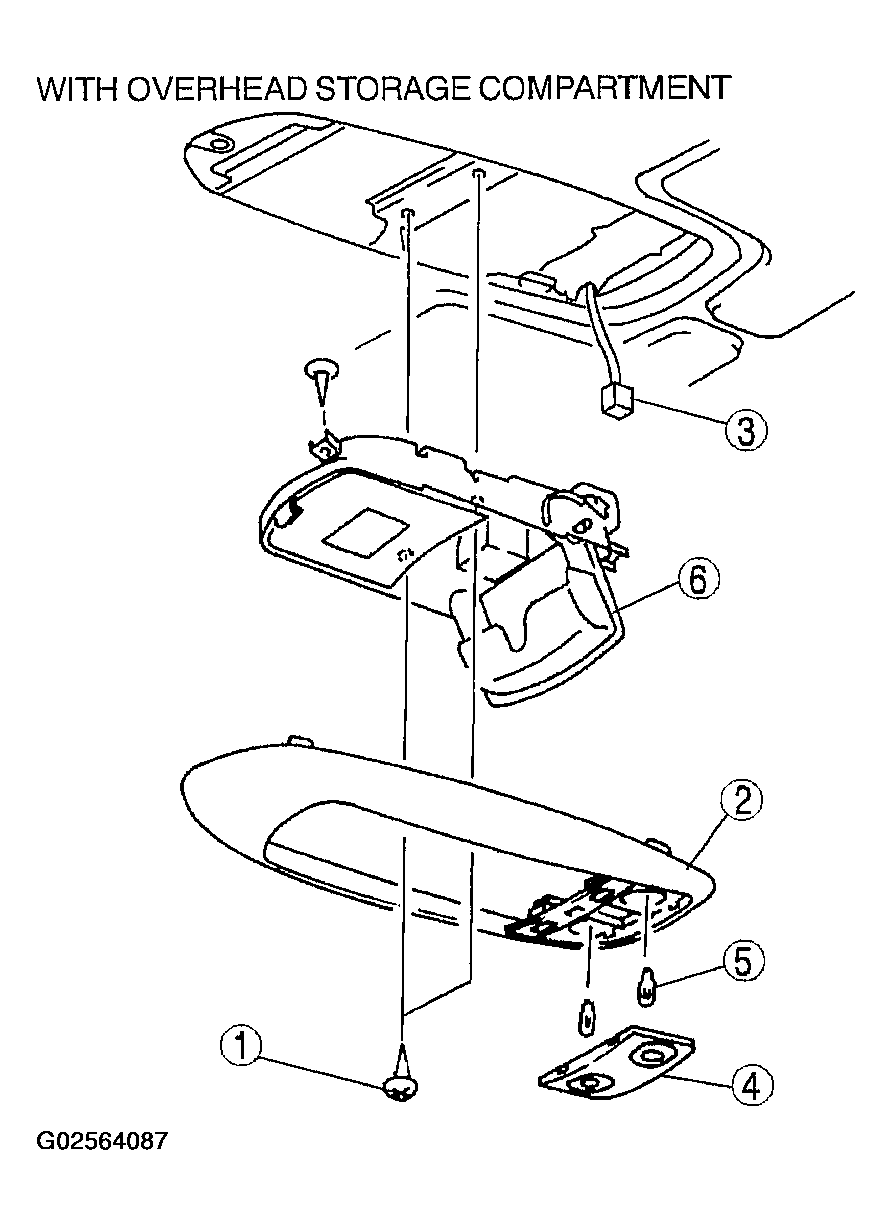

    Fig 1: Removing/Installing Map Light - Without Sliding Sunroof (Overhead Storage Compartment)
    G02564087Courtesy of MAZDA MOTORS CORP.
    REMOVING/INSTALLING MAP LIGHT - WITHOUT SLIDING SUNROOF (WITHOUT OVERHEAD STORAGE COMPARTMENT) (1)

    Component/Step No. Component Description
    1 Map Light
    2 Connector
    3 Lens (See LENS REMOVAL NOTE )
    4 Map Light Bulb
    (1) See Fig 2.

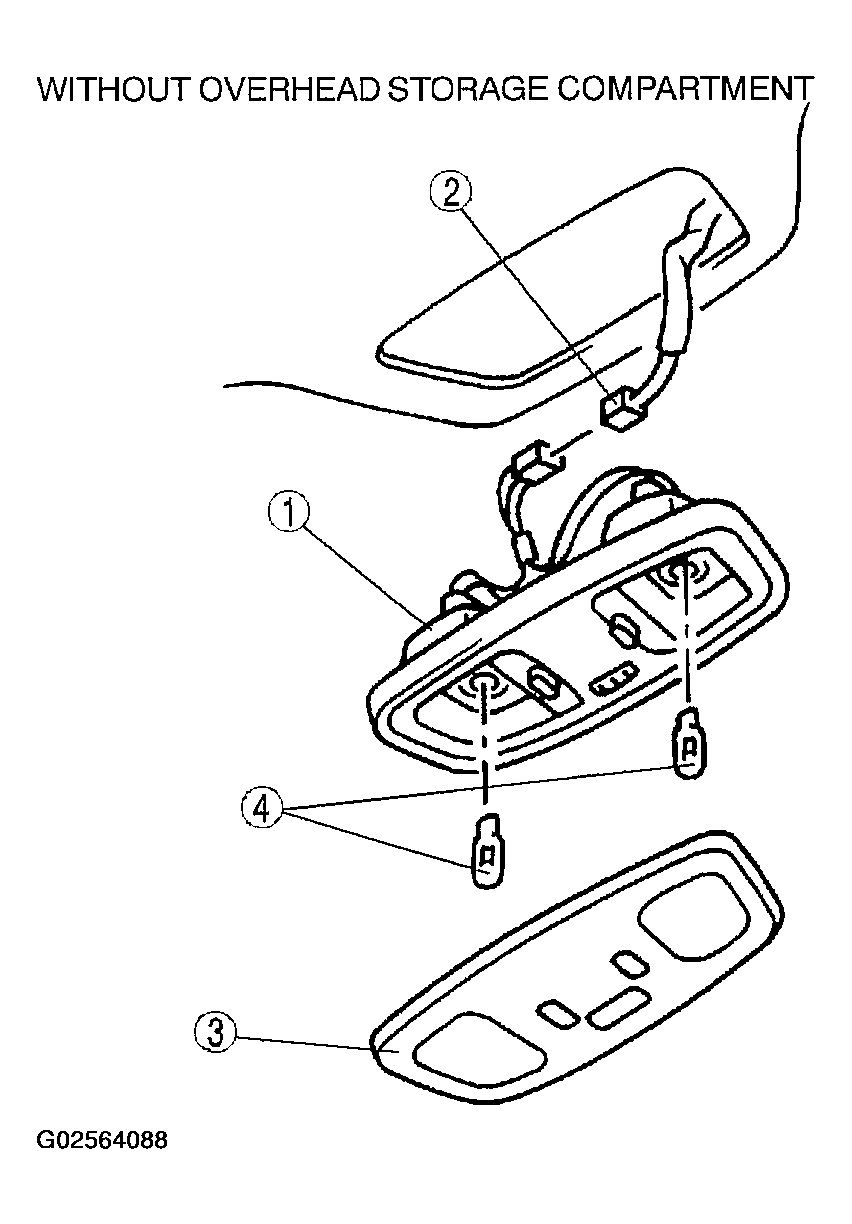

    Fig 2: Removing/Installing Map Light - Without Sliding Sunroof (Without Overhead Storage Compartment)
    G02564088Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
