2000 Mazda MPV DXFACTORY OEM SERVICE PROCEDURE

Combination Switch Disassembly/Assembly

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disassemble in the order indicated in the table/figure.
    DISASSEMBLING/ASSEMBLING COMBINATION SWITCH (1)

    Component/Step No. Component Description
    1 Screw
    2 Wiper and washer switch
    3 Light switch
    4 Body
    (1) See Fig 1.

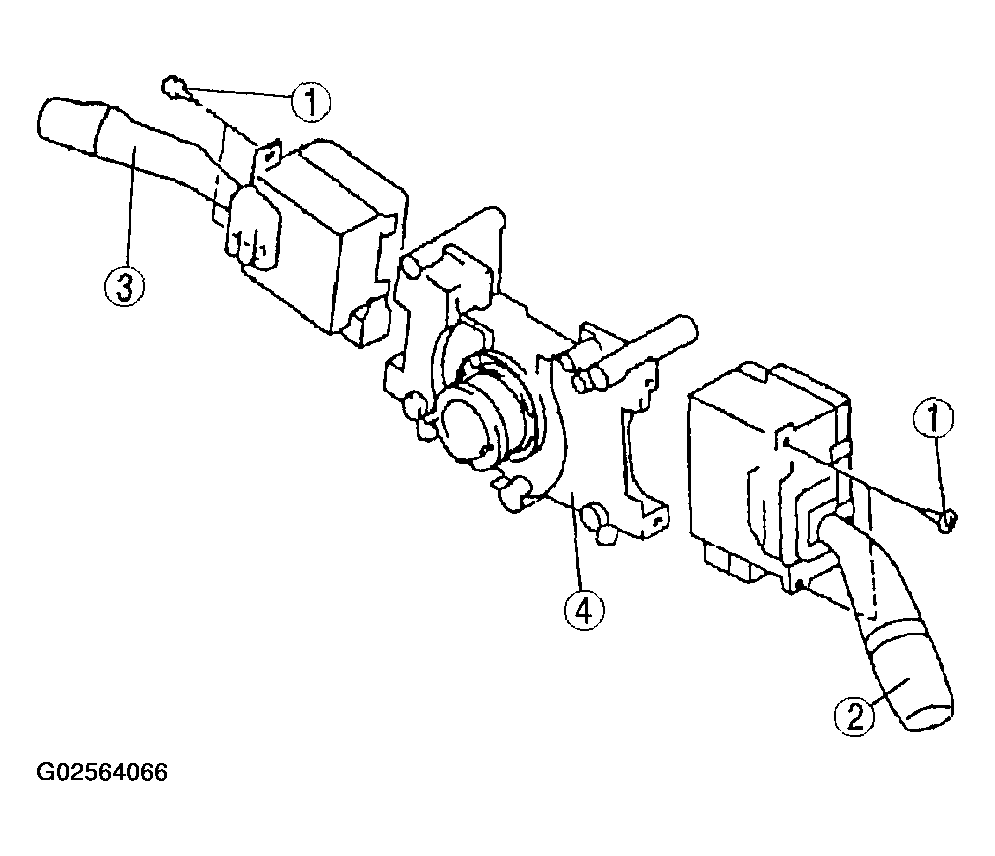

    Fig 1: Disassembling/Assembling Combination Switch
    G02564066Courtesy of MAZDA MOTORS CORP.
  2. Assemble in the reverse order of disassembly.
Chapter Navigation
Return to Chapter: Section 233 (Lighting System)
