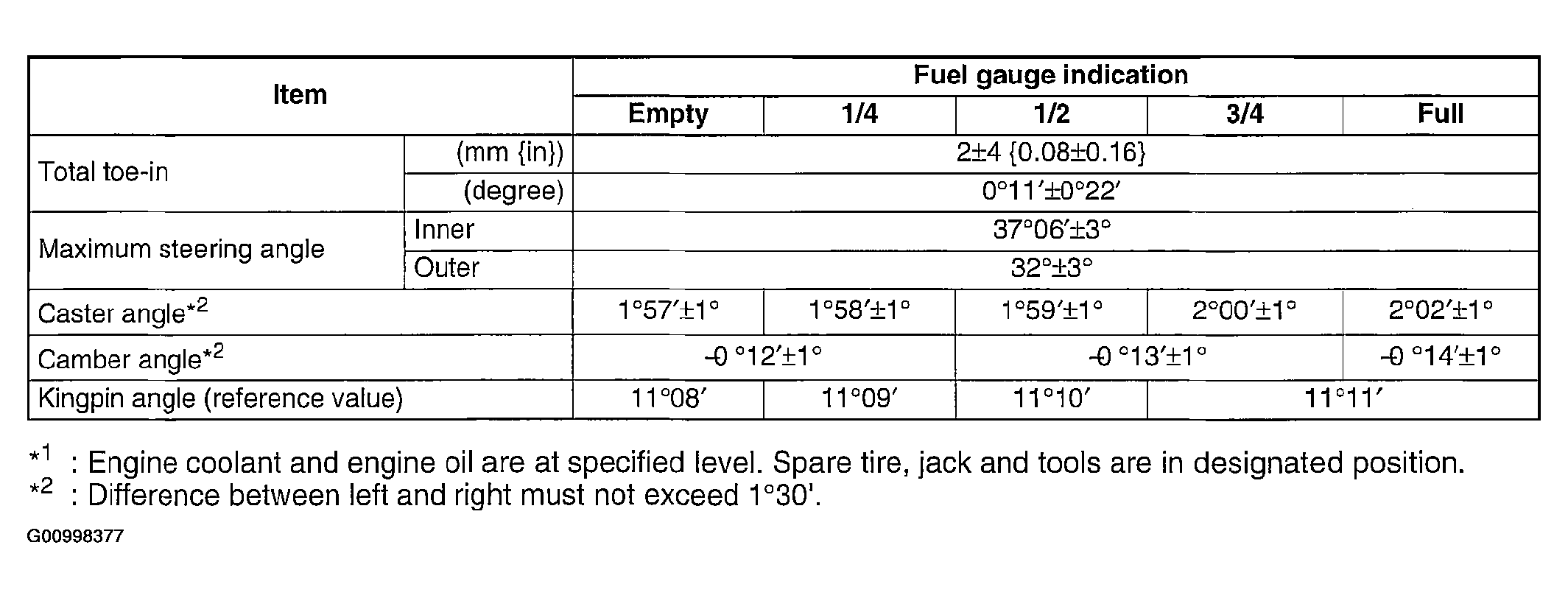

Specification (Unloaded)
Maximum Steering Angle Adjustment
- Loosen the tie-rod end locknuts.
- Remove the steering gear boot clamp.

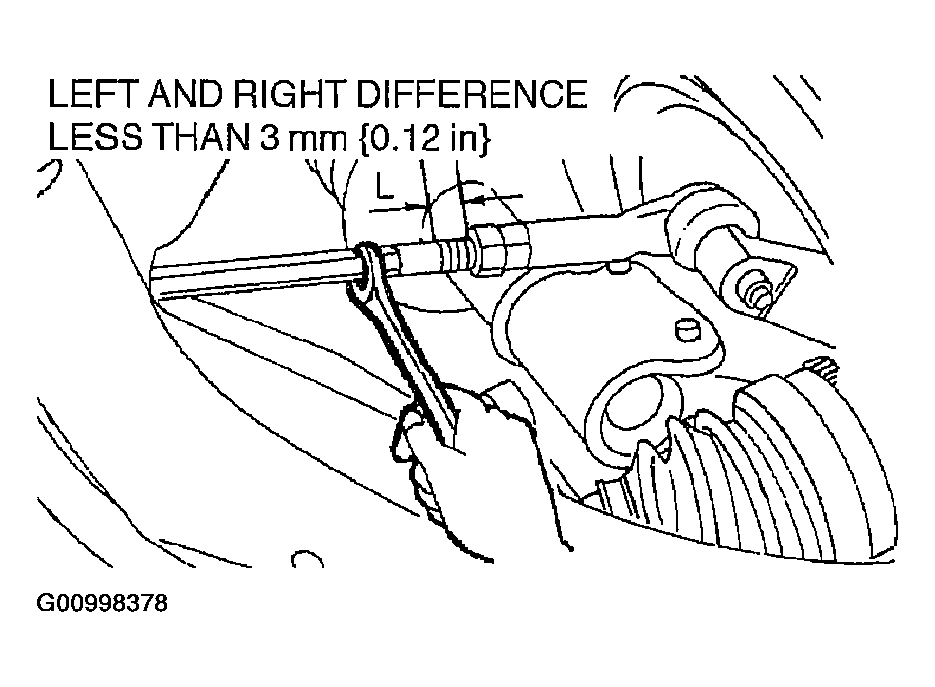

- Turn the tie rods to equalize the length L.
Maximum left/right difference
3 mm {0.12 in}
- Turn the tie rods equally to provide the correct maximum steering angle.
- Tighten the tie-rod end locknuts.
Tightening torque
68.6-98.0 N.m {7.00 kgf.m, 50.6-72.2 ft.lbf}
- Verify that the boot is not twisted, and install the boot clamp.
- Adjust the steering angle, and adjust the toe-in.
