2000 Mazda MPV DXFACTORY OEM SERVICE PROCEDURE
Section 161 (Power Steering System): Fill
WARNING: This page is about a different car, the 2002 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Do not mix oil types. Any mixture or any unapproved oil can lead to seal deterioration and leaks. A leak can ultimately cause loss of fluid, which can result in a loss of power steering assist.

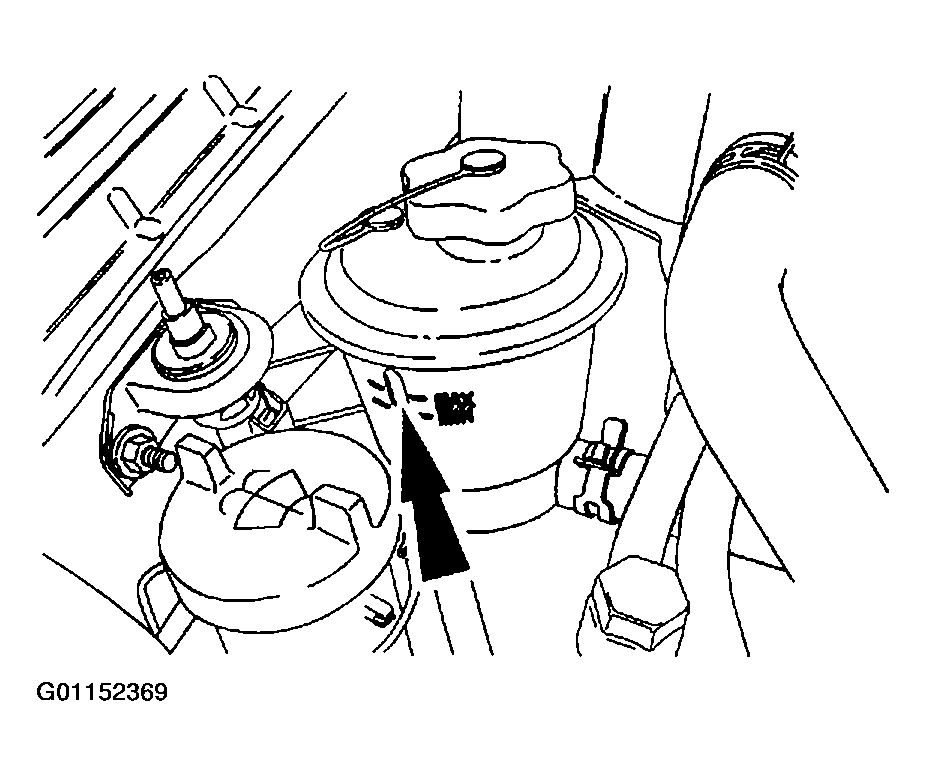

- Fill the reservoir.
- Use MERCON(R) Automatic Transaxle Fluid (ATF).

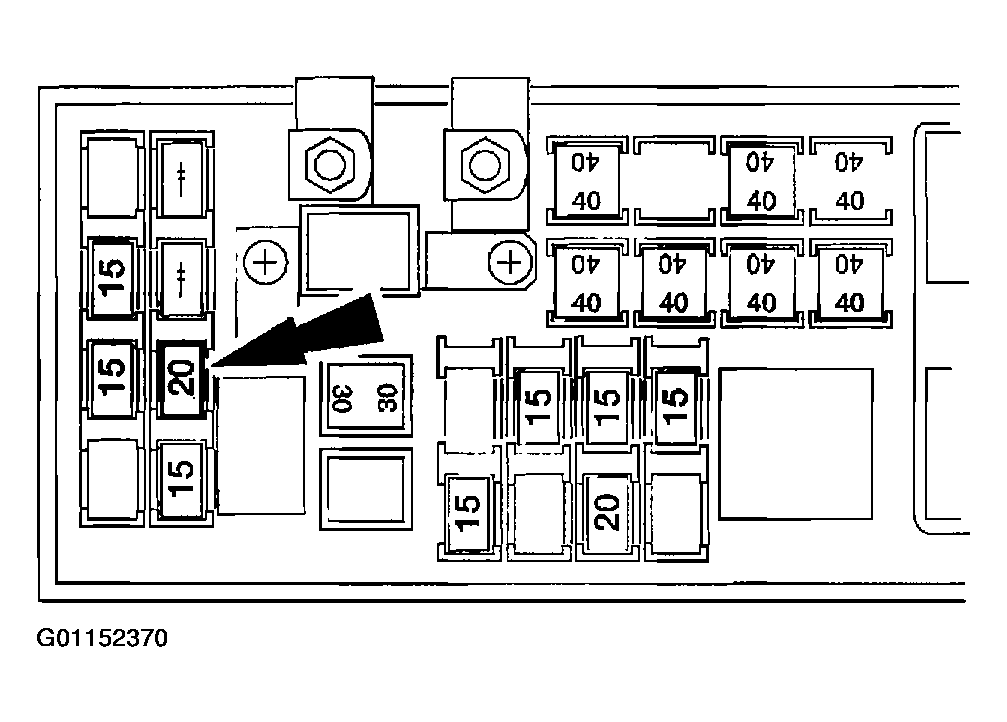

- Remove the FUEL fuse to disable the vehicle.
- Raise the front wheels off the floor. Refer to WHEELS AND TIRES .
CAUTION: Do not crank the engine for more than 15 seconds at a time. Allow the starter to cool for 1 minute before cranking again. Premature starter failure can occur.
