2000 Mazda MPV DXFACTORY OEM SERVICE PROCEDURE
Fuel Pump Relay

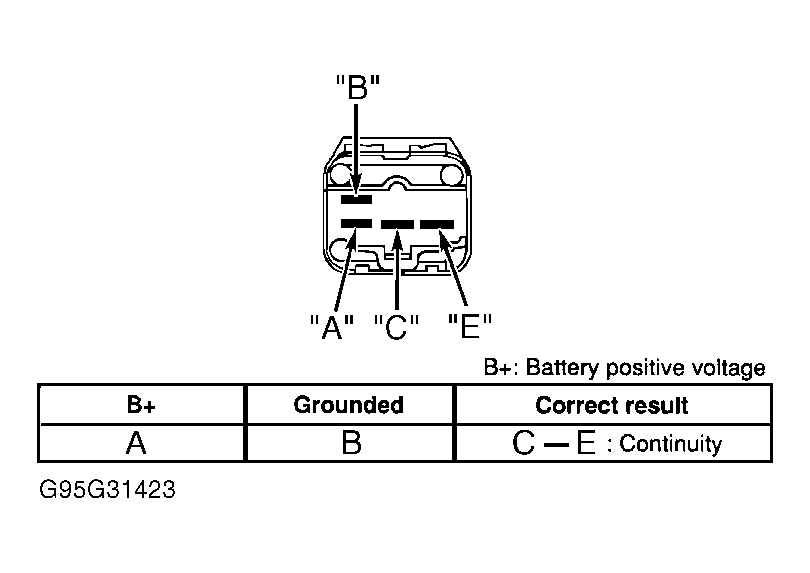

- Locate fuel pump relay. See FUEL PUMP RELAY LOCATIONS table under FUEL PRESSURE RELEASE. Using jumper wires, connect battery voltage to fuel pump relay terminal "A" (positive) and terminal "B" (negative). See Fig 2 or Fig 1 .
- On Miata, MPV and Protege, check continuity between fuel pump relay terminals "C" and "E". On Millenia and 626, check continuity between fuel pump relay terminals "C" and "D". On all models, with battery voltage connected, continuity should exist. With battery voltage disconnected, continuity should not exist. If continuity is not as specified, replace fuel pump relay.
