Main Switch

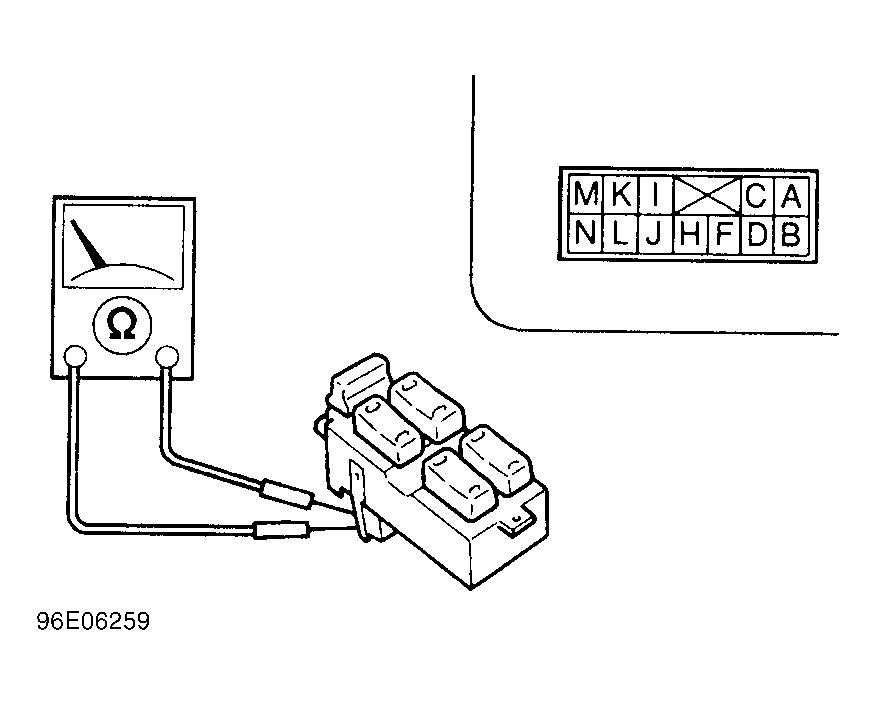

Disconnect main switch connector. Check for continuity between specified terminals of main switch with main switch button held in specified position. See MAIN SWITCH CONTINUITY TEST . SeeFig 1 . If continuity is not as specified, replace main switch.
| Switch Position (1) | Terminals | |||
|---|---|---|---|---|
| Driver | ||||
| UP | A & H; C & F | |||
| DOWN | A & F; C & H | |||
| Auto Down | A & F; C & H | |||
| Off (Neutral) | A, C & F | |||
| Passenger | ||||
| UP | F & K; H & M | |||
| DOWN | F & M; H & K | |||
| Off (Neutral) | F, K & M | |||
| Left Rear | ||||
| UP | B & F; D & H | |||
| DOWN | D & F; B & H | |||
| Off (Neutral) | B, D & F | |||
| Right Rear | ||||
| UP | H & L; F & N | |||
| DOWN | F & L; H & N | |||
| Off (Neutral) | F, L & N | |||
|
||||
