1996 Mazda MPV DXFACTORY OEM SERVICE PROCEDURE
Throttle Position (TP) Sensor Continuity: Adjustment

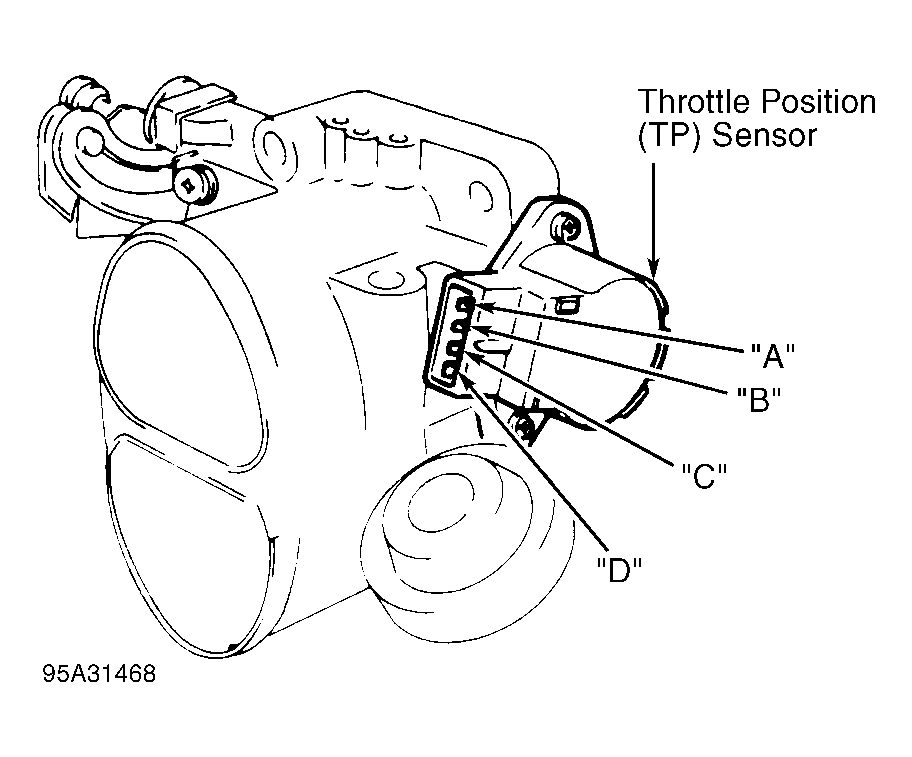

- Turn ignition switch to OFF position and throttle valve to closed throttle position. Disconnect TP sensor connector. Connect ohmmeter between terminals "C" and "D" of TP sensor connector. See Fig 1 . Insert a feeler gauge of specified thickness between throttle lever and throttle stop screw. See TP SENSOR CONTINUITY TABLE .
- Loosen TP sensor screws. Rotate TP sensor until ohmmeter indicates continuity as specified. See TP SENSOR CONTINUITY TABLE . Tighten TP sensor screws. Open throttle valve fully a few times. Recheck TP sensor adjustment. If TP sensor is not adjusted as specified, replace TP sensor.
TP SENSOR CONTINUITY
| Condition (1) | Continuity Between Terminals "C" & "D" | ||
|---|---|---|---|
| .006" (.15 mm) | Yes | ||
| .020" (.5 mm) | No | ||
|
|||
