1995 Mazda MX-6 Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Main Switch Continuity

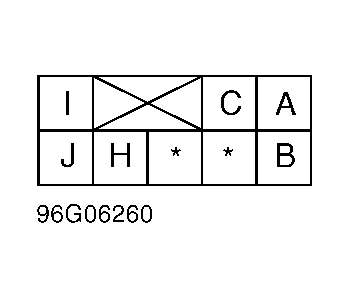

MAIN SWITCH CONTINUITY TEST (MX-6)
| Switch Position (1) | Terminals | |||
|---|---|---|---|---|
| Driver | ||||
| UP | A & C; B & J | |||
| DOWN | A & J; B & C | |||
| One-Touch DOWN | A & J; B & C | |||
| Off (Neutral) | A, B & C | |||
| Passenger | ||||
| UP | C & I; H & J | |||
| DOWN | C & H; I & J | |||
| Off (Neutral) | C, H & I | |||
|
||||
MAIN SWITCH CONTINUITY TEST (626)
| Switch Position (1) | Terminals | |||
|---|---|---|---|---|
| Driver | ||||
| UP | A & L; H & J | |||
| DOWN | A & J; H & L | |||
| One-Touch DOWN | A & J; H & L | |||
| Off (Neutral) | H, J & L | |||
| Passenger | ||||
| UP | A & D; B & H | |||
| DOWN | A & B; D & H | |||
| Off (Neutral) | B, D & H | |||
| Right Rear | ||||
| UP | A & E; C & H | |||
| DOWN | A & C; E & H | |||
| Off (Neutral) | C, E & H | |||
| Left Rear | ||||
| UP | A & K; H & I | |||
| DOWN | A & I; H & K | |||
| Off (Neutral) | H, I & K | |||
|
||||
