1995 Mazda MX-5 Miata Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Ignition Coil Resistance
- Remove primary and secondary leads from ignition coil. Using ohmmeter, check primary resistance between positive and negative terminals of coil. See Fig 1 . Resistance should be as specified in IGNITION COIL RESISTANCE table. If resistance is not as specified, replace ignition coil.

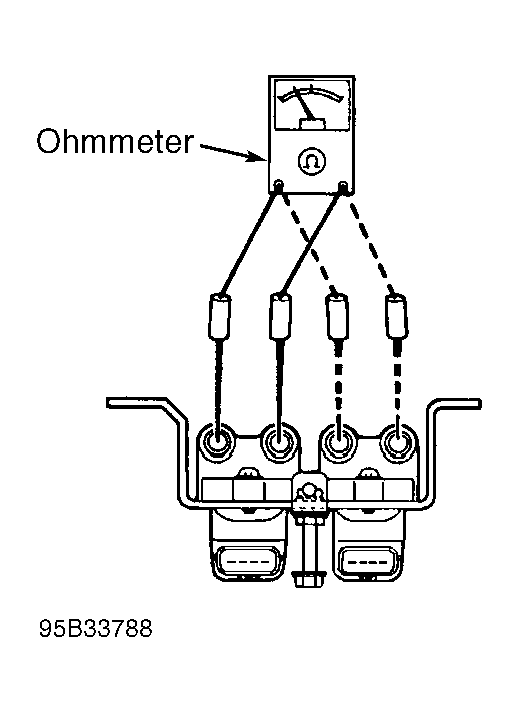

- Check secondary resistance between coil towers of each coil. See Fig 1 . See IGNITION COIL RESISTANCE table. If resistance is not within specification, replace coil.
- Check insulation resistance of case. Using a 500-volt megger, measure insulation resistance between positive terminal and coil case. If resistance is not more than 10 megohms, replace ignition coil.
IGNITION COIL RESISTANCE - Ohms @ 68°F (20°C)
| Application | Primary | Secondary | ||
|---|---|---|---|---|
| Miata | (1) | 8700-12,900 | ||
|
||||
