Abs Control Module Test

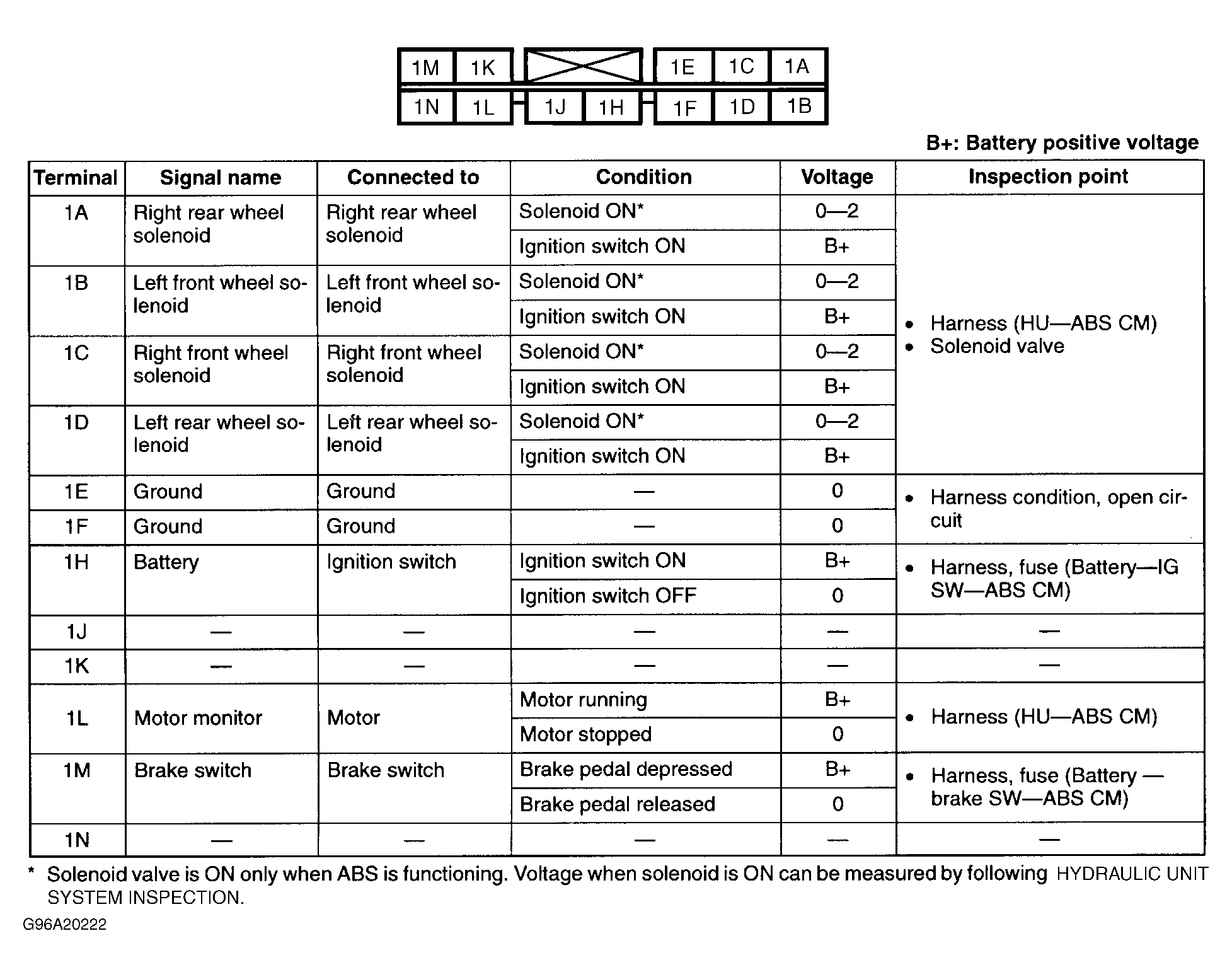

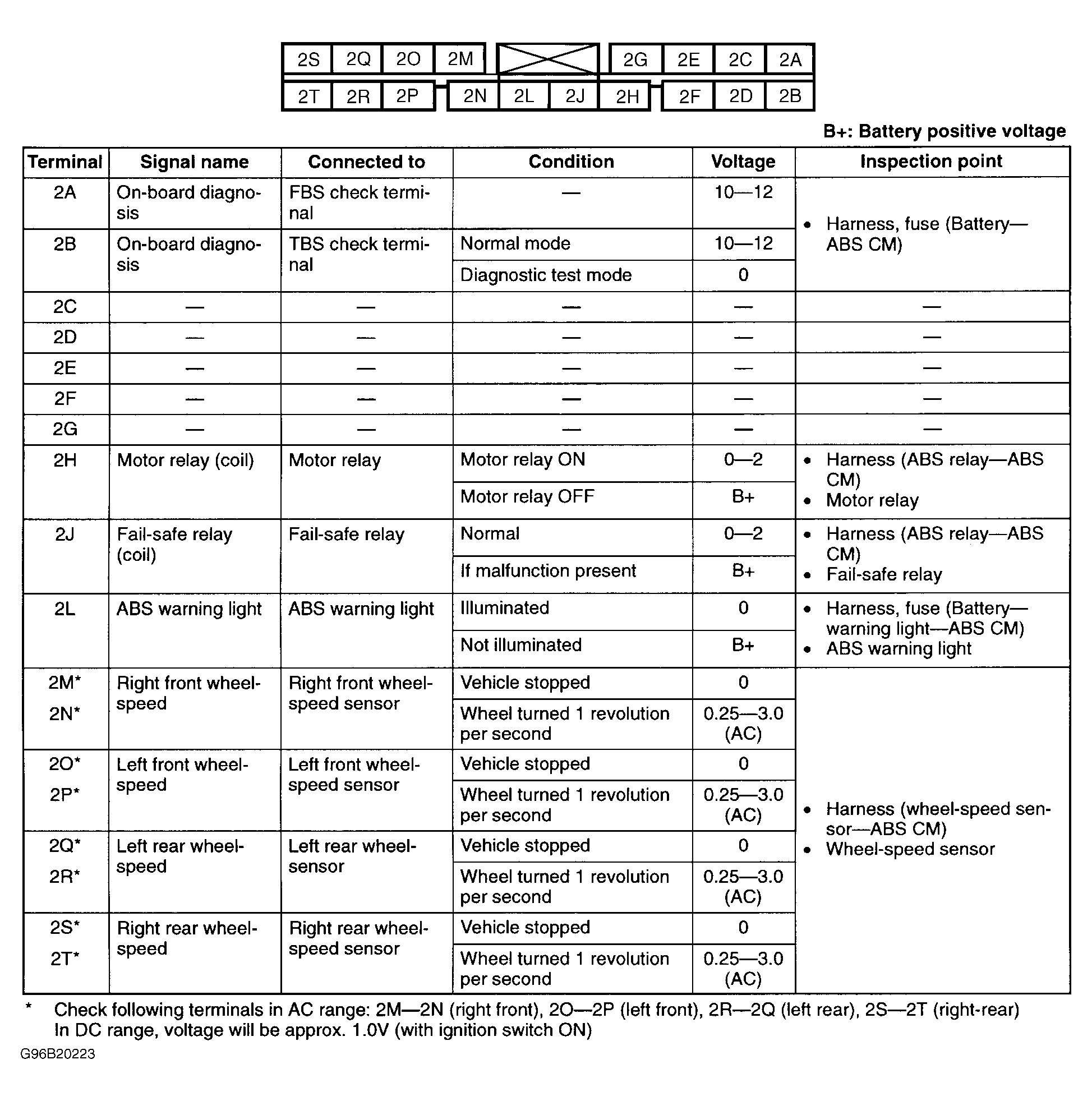

ABS control module is located under passenger seat. Unless indicated otherwise, test with ignition on and ABS control module connector connected. Measure voltage between ground and applicable terminal of ABS CM connector. If voltage is not as specified, check appropriate component listed under INSPECTION POINT. See Fig 1 through Fig 2 . If components are okay, replace ABS CM.
