1995 Mazda MPV LFACTORY OEM SERVICE PROCEDURE
Ignition Timing
NOTE:
Before adjusting ignition timing, warm engine to normal operating temperature. Turn off all accessories. Place transmission in Neutral (M/T) or Park (A/T). Ensure idle speed is correct. See IDLE SPEED
under IDLE SPEED & MIXTURE. If ignition timing is not within specification, loosen distributor or crankshaft position sensor lock bolt. Rotate distributor or crankshaft position sensor until timing marks are aligned. Tighten lock bolt.

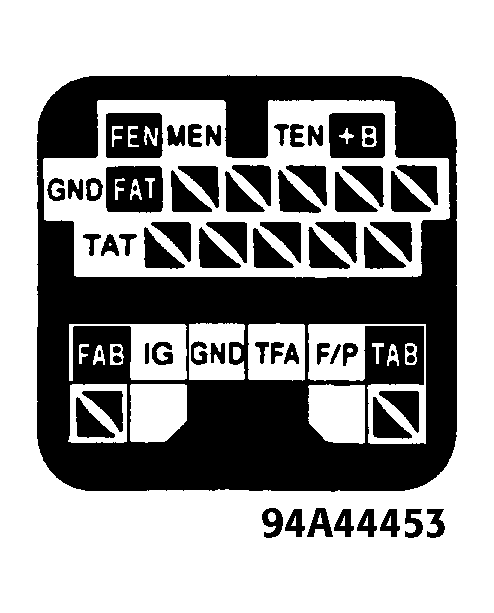

- Connect Diagnostic Tester (49-B019-9A0) to data link connector. Set SYSTEM SELECT to position 1 and TEST SWITCH to SELF-TEST, or connect jumper wire between data link connector terminals TEN and GND. See Fig 1 .
- Connect timing light to engine. Set timing to specification.
