Main Switch

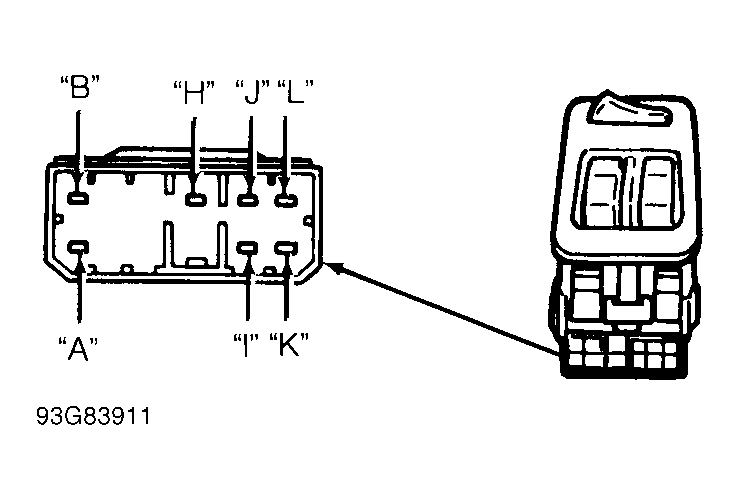

Check continuity across specified terminals of main switch connector with main switch button held in specified position. See appropriate MAIN SWITCH CONTINUITY TEST . See Fig 1 and Fig 2 . Replace main switch if continuity is not as specified.
| Switch Position | Terminals | ||
|---|---|---|---|
| 1995 Models | |||
| Driver | |||
| UP | A & K; B & L | ||
| Off (Neutral) | B, K & L | ||
| DOWN | A & L; B & K | ||
| Passenger | |||
| UP | A & I; B & J | ||
| Off (Neutral) | B, I & J | ||
| DOWN | A & J; B & I | ||
| 1996 Models | |||
| Driver | |||
| UP | L & H; N & F | ||
| Off (Neutral) | F, L & N | ||
| DOWN | L & F; H & N | ||
| Auto Up | H & L; F & N | ||
| Auto Down | H & N; F & L | ||
| Passenger | |||
| UP | D & H; B & F | ||
| Off (Neutral) | D, B & F | ||
| DOWN | B & H; D & F | ||
| Right Rear | |||
| UP | A & J; C & F | ||
| Off (Neutral) | A, C & F | ||
| DOWN | A & F; C & J | ||
| Left Rear | |||
| UP | K & F; M & J | ||
| Off (Neutral) | F, K & M | ||
| DOWN | F & N; J & K | ||
