1995 Mazda B3000 Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Caster Adjustment
- Measure camber and caster to determine if adjustment is necessary. Record specifications for use in selection of camber/caster adjusters. To adjust, raise and support vehicle. Remove front wheel assembly. Remove brake caliper and steering knuckle assembly.

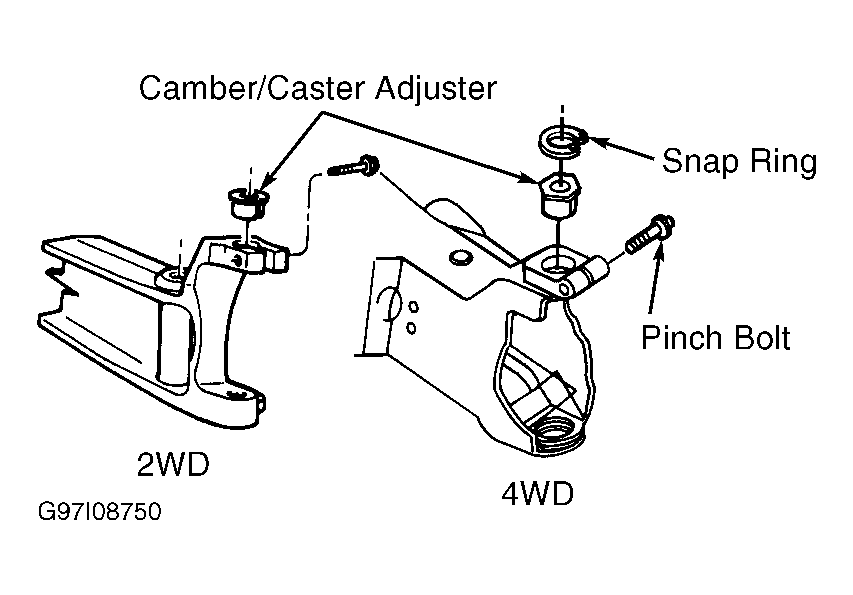

- Remove pinch bolt and camber/caster adjuster from front axle. See Fig 1 . Install appropriate camber/caster adjuster, and rotate to desired adjustment. See Fig 2 . Install pinch bolt, and tighten to specification. See TORQUE SPECIFICATIONS . Install NEW adjuster snap ring. Install caliper, steering knuckle and wheel assembly. Check alignment to verify correct adjustment.
