Cold Start Injector Relay

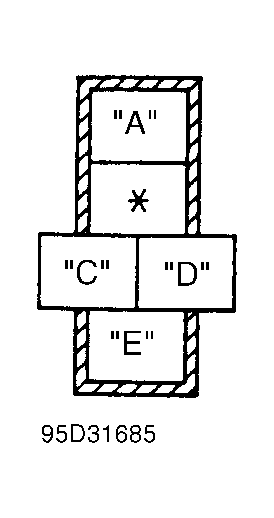

Remove cold start injector relay (located in left/front of engine compartment). Using ohmmeter, check continuity between terminals "A" and "E". Continuity should not exist. See Fig 1 . Apply battery voltage to terminal "C", and ground terminal "D". Again check continuity between terminals "B" and "D" with battery voltage applied. Continuity should exist between terminals "A" and "E" with voltage applied. Replace relay as necessary.
