Accumulators

CAUTIONS:
- Each valve should slide out/in under its own weight.
- When a valve will not slide out under its own weight, depending on the valve, push it out with a wire or place the valve body open-side down and lightly tap it with a plastic hammer. Never scratch or otherwise damage a valve surface or bore.
- Do not drop or lose the valves or internal parts.
- Before assembly, make sure all parts are thoroughly clean.
- Apply ATF to all parts and bores.
- Note the proper direction of the valve and internal parts.
- Do not reuse any part that has been dropped.
- Wrap a screwdriver or rod with tape before using it to insert a valve.





DISASSEMBLY

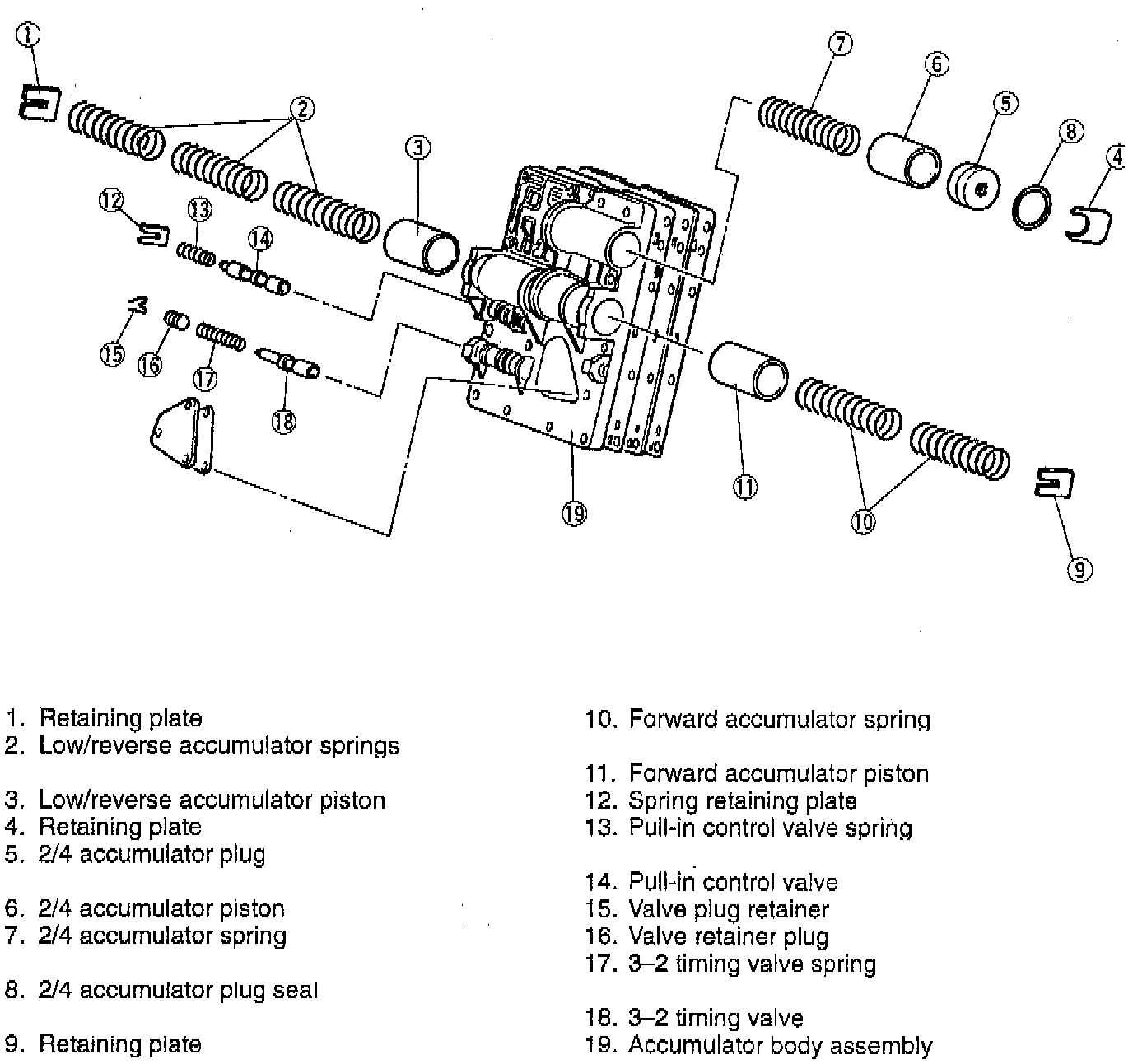

- Disassemble in the order shown in the illustration, referring to the following note:





2/4 Accumulator Plug
1. Remove the 2/4 accumulator plug by using a bolt.





2. Remove the 2/4 accumulator plug seal. Discard the seal.

INSPECTION
- Inspect all parts and repair or replace as necessary.
- Springs must not be twisted.
- Springs must not be damaged.

ASSEMBLY
- Assemble in the reverse order of disassembly, referring to the following note:

2/4 Accumulator Plug Seal

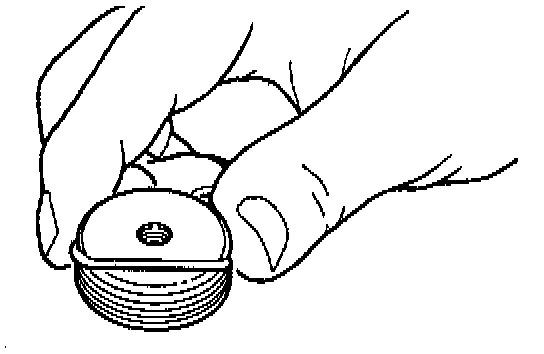

1. Install a new seal on the 2/4 accumulator plug.





2. Lubricate the plug and install.

CAUTION: Do not push the plug into the bore beyond flush or damage to the seal will occur.





3. Install the retaining plate by using needle-nosed pliers.
