1994 Mazda MX-6 Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Ignition Coil Resistance

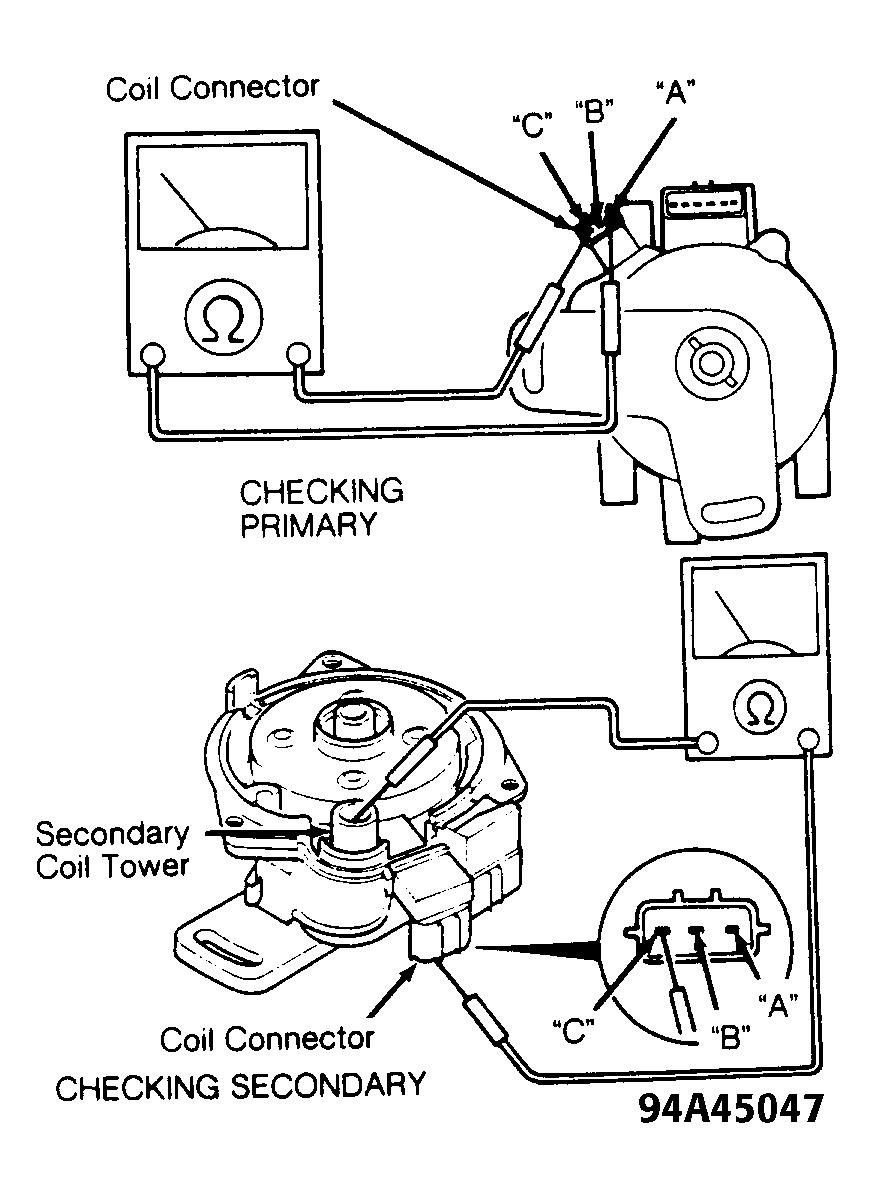

- Remove primary and secondary leads from ignition coil. Using ohmmeter, check primary resistance between terminals "A" and "B" of coil. See Fig 1 . Resistance should be as specified in IGNITION COIL RESISTANCE table. If resistance is not as specified, replace ignition coil.
- Check secondary resistance between terminal "A" and coil tower. See Fig 1 . See IGNITION COIL RESISTANCE table. If resistance is not within specification, replace coil.
IGNITION COIL RESISTANCE
| Application | Primary | Secondary |
|---|---|---|
| MX-6 & 626 | .58-.86 | 11,500-18,500 |
