1994 Mazda 929FACTORY OEM SERVICE PROCEDURE
Throttle Position (TP) Sensor: Adjustment

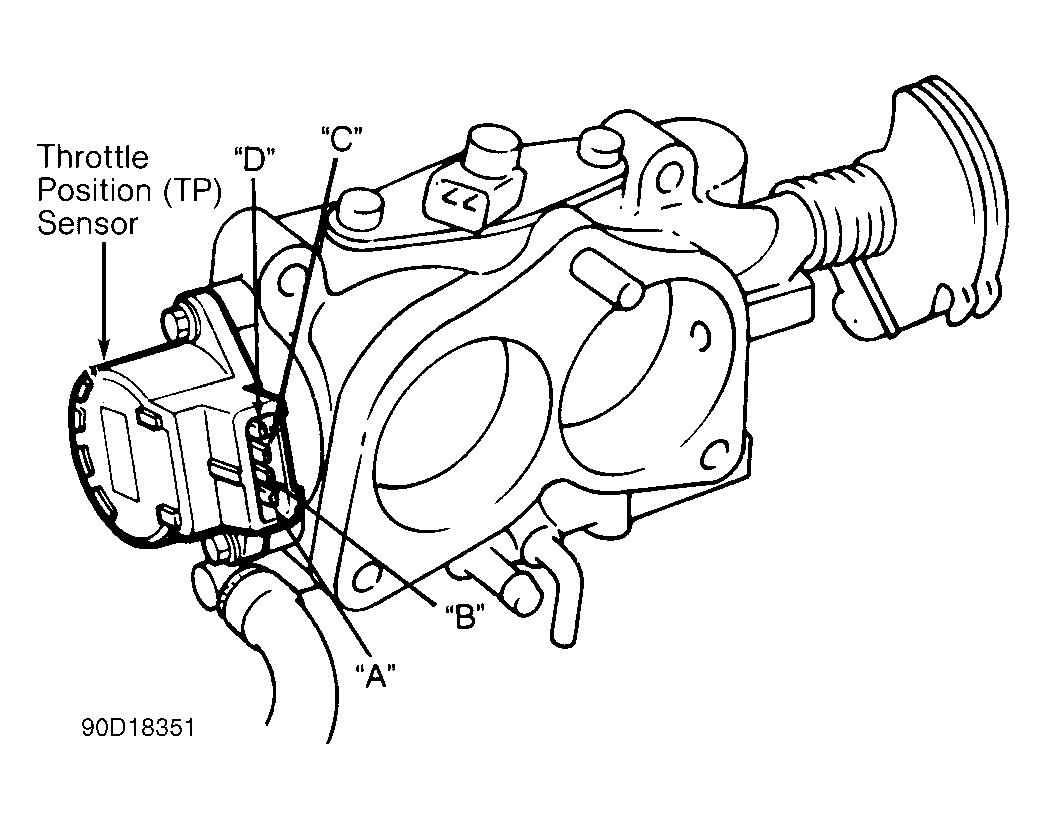

- Insert a feeler gauge of specified thickness between throttle lever and throttle stop screw. See TP SENSOR ADJUSTMENT table. Check continuity between TP sensor connector terminals "C" and "D". See Fig 1 .
- If continuity is not as specified, loosen TP sensor mounting screws. Rotate TP sensor until continuity is as specified. Tighten mounting screws. Connect TP sensor connector.
TP SENSOR RESISTANCE
| Application | Ohms | |
|---|---|---|
| Between Terminals "A" & "D" | 3000-6000 | |
| Between Terminals "B" & "D" | ||
| Closed Throttle | 200-600 | |
| Wide Open Throttle | 3300-7000 | |
TP SENSOR ADJUSTMENT
| Test Condition (1) | Continuity Between Terminals "C" & "D" | ||
|---|---|---|---|
| .004" (.1 mm) | Yes | ||
| .008" (.2 mm) | No | ||
|
|||
