1994 Mazda 929FACTORY OEM SERVICE PROCEDURE
Continuity Test

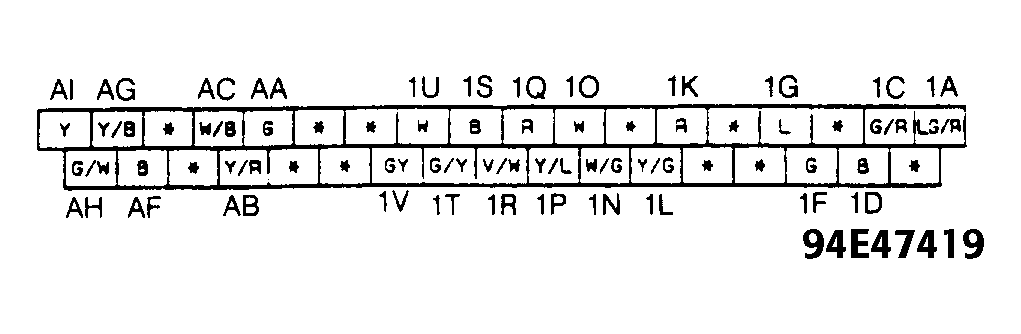

Using a DVOM, check for continuity between ground and following ABS control unit connector terminals: 1D, 1S and AF. See Fig 1 . If continuity is not present, repair wiring harness.
